10m 6m DualBand Antenna 10m6m10HD-2C 10elements

Compact HF VHF 10m 6m DualBand Antenna 10m6m10HD-2C 10elements. Covers 10m band 28-29MHz and VHF 6m DX band 50-50.5MHz. The 6m antenna is on a separate connector with a 1500W balun. Behaves as two monoband antennas. It is equally effective for contests or DX’ing.



10m 6m DualBand Antenna 10m6m10HD-2C 10elements Appearance:



What does 10m6m10HD-2C mean?

• 10m – 10m band. Covers 28-28.8MHz frequency range with low SWR
• 6m – 6m band. Covers 50-50.5MHz
• 10 – 10 elements overall (5 for 10m, and 5 for 6m band)
• HD – Heavy Duty Construction
• 2C – 2Connectors. One for the 10m band and the other for 6m.



10m band electrical specifications of 10m 6m DualBand Antenna 10m6m10HD-2C

Frequency range: 28 – 29 MHz
Free space forward Gain: 9.7 dBi
Front-to-back ratio: 27 dB
-3dB Horizontal Beam-width: 57.2°
Nominal Input Impedance: 50 Ohm
Maximum Power Input: 2500W (Up to 8-10 kW by order)



10m Power input options by order of 10m6m10HD-2C

“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 8000-10000W 10m6m10HDEX-2C

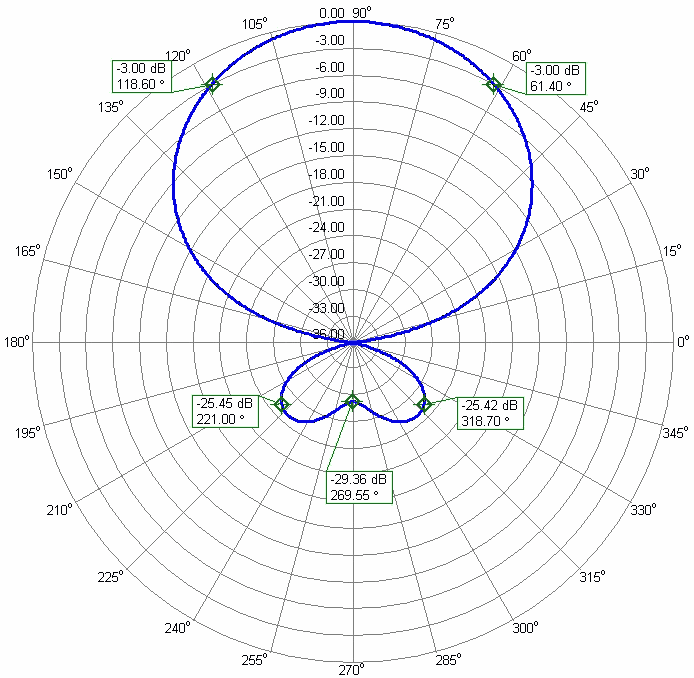

10m Azimuth Radiation Pattern of DualBand Antenna 10m6m10HD-2C



6m band electrical specifications of 10m 6m DualBand Antenna 10m6m10HD-2C

Frequency range: 50 – 50.5 MHz
Free space forward Gain: 9.7 dBi
Front-to-back ratio: 29 dB
-3dB Horizontal Beam-width: 59°
Nominal Input Impedance: 50 Ohm
Maximum Power Input: 1500W (up to 5 kW by order)



6m Power input options by order of 10m6m10HD-2C

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 3500W 10m6m10HDE-2C
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 8000W 10m6m10HDEX-2C

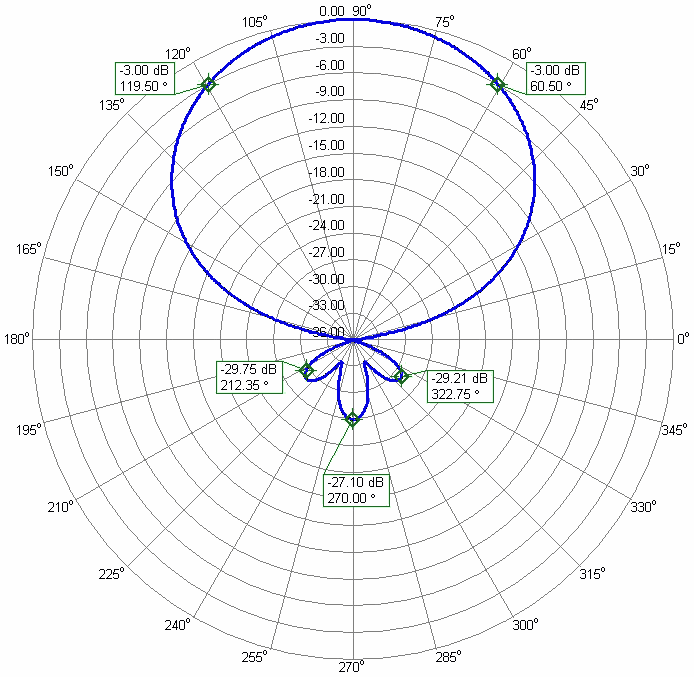

6m Azimuth Radiation Pattern of DualBand Antenna 10m6m10HD-2C



Mechanical Specifications of HF VHF 15m 10m 6m 3Band Antenna 15m10m6m15HD-2C

Number of Elements: 10 Full-Size Elements (5+5)
Elements Diameter: Tapered elements 25mm to 8 mm for the 10m band and 12 to 8mm for the 6m band
Longest Element: 5.8 m
Element Mounting Position: Below the boom and above the boom
Baluns and Connectors: Included
Boom Length: 5.84 m
Boom Size: 60 x 60 mm
Turning Radius: 4 m
Number of Boom Pieces: 4
Guy rope support: Yes, included Stainless Steel AISI 316L rope 4 mm.
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: 2 x M12 Stainless Steel AISI 316L (A4)
Survival Wind Speed:150 km/h
Net Weight: 24 kg
Gross Weight: 27 kg
Transportation length: 1.55m



Picture gallery of 10m6m10HD-2C

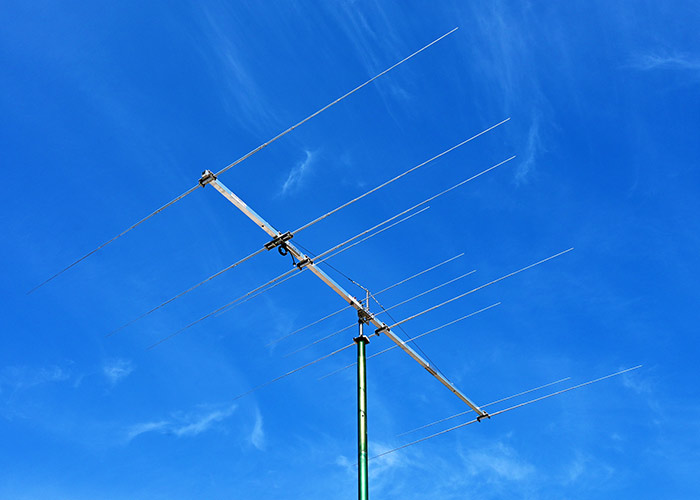

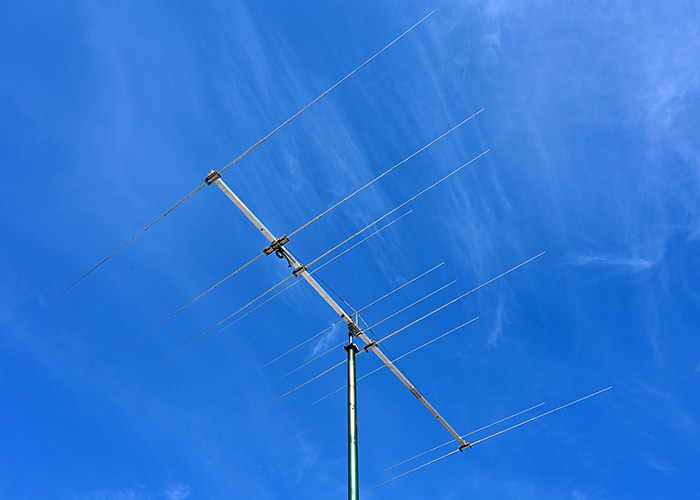

10m 6m DualBand Antenna 10m6m10HD-2C 5+5 elements

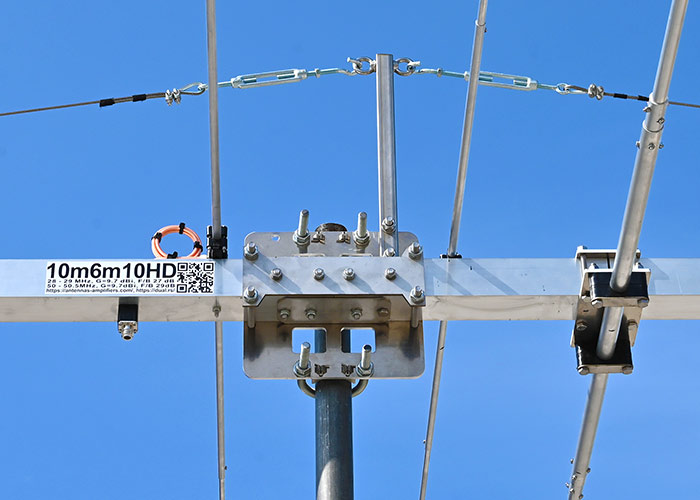

10m 6m DualBand Antenna 10m6m10HD-2C 6m Dipole 1500W Balun Stainless Steel Bracket



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.
  All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, significantly outperforming those designed with the EZNEC program.
• No tuning antennas.
  Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up.
  Everything is labeled, just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties.
  We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



The YouTube video of Big Brother is here.

Other HF-VHF Monoband, DualBand, TriBand, or Five-band antennas are here
