13cm High Gain Changeable Polarization Yagi Antenna 13cm17DXHV 2300 – 2340 MHz

Excellent 2300 – 2340 MHz 13cm High Gain Changeable Polarization Yagi Antenna 13cm17DXHV in radome, 17 elements.



Key Features:

• High gain: 16.7 dBi
• Maximum power: 65W
• Polarization change in a minute

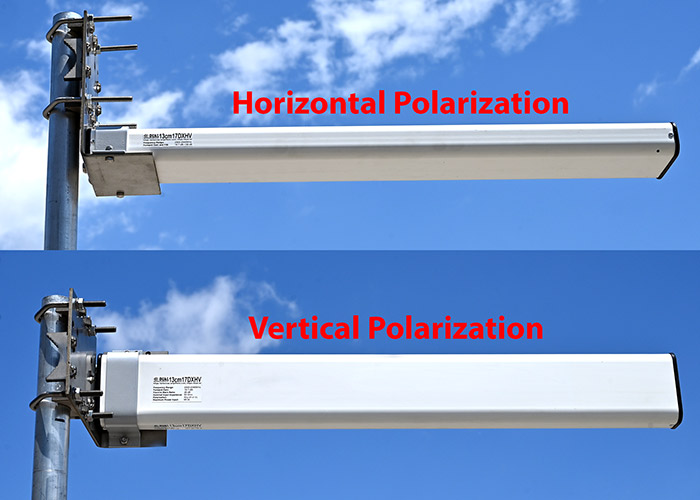

• Horizontal polarization bracket position
• Vertical polarization bracket position
• In a dedicated radome to prevent rain detuning

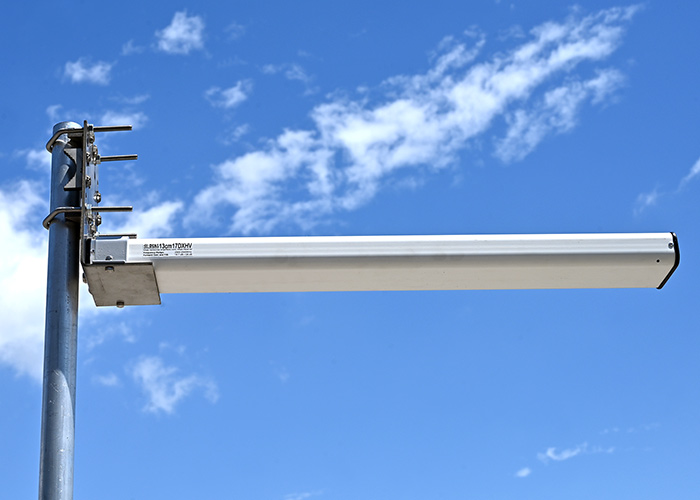

13cm High Gain Antenna Horizontal Polarization Position 13cm17DXHV Appearance:



What does 13cm17DXHV mean?

• 13cm – 13m Band. Covers 2.3GHz to 2.34GHz
• 17 – 17 elements
• DX – DX band
• H – Horizontal polarization
• V – Vertical polarization

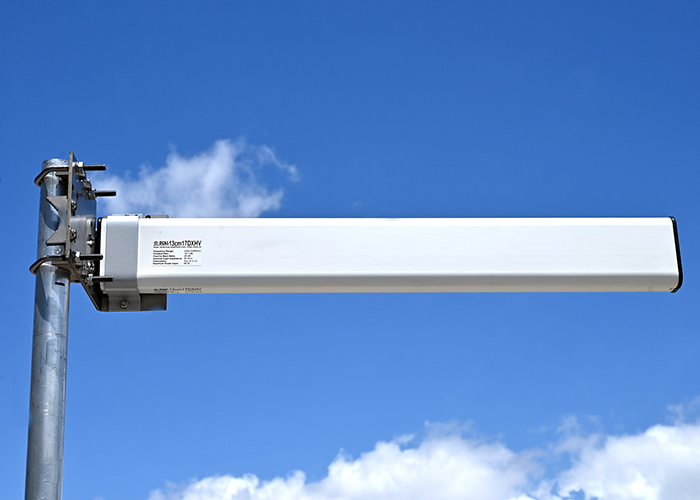

13cm High Gain Antenna Vertical Polarization Position 13cm17DXHV Appearance:



Electrical Specifications of 13cm 2300 2340 MHz Changeable Polarization Yagi Antenna 13cm17DXHV

Frequency Range: 2300 – 2340 MHz
Free Space Forward Gain: 16.7 dBi
Front-to-Back Ratio: 26 dB
-3 dB Horizontal Beamwidth: 28°
-3 dB Vertical Beamwidth: 29°
Polarization: Any
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 65W
Matching Method: RG316 Teflon Voltage Balun 1:4
Connector: “N”



Mechanical Specifications of 13cm High Gain Changeable Polarization Yagi Antenna 13cm17DXHV

Number of elements: 17
Radome Length: 750 mm
Overall Length: 770 mm
Mounting Mast Diameter: 43- 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed: 150 km/h
Net Weight: 3.5 kg
Gross Weight: 4.5 kg
Transportation Length: 77cm



13cm High Gain Changeable Polarization Yagi Antenna 13cm17DXHV Measured Return Loss with Radome:



2300 – 2340 MHz 13cm17DXHV Measured SWR with Radome:





13cm High Gain Changeable Polarization Yagi Antenna 13cm17DXHV 2300 – 2340 MHz



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.
  All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, significantly outperforming those designed with the EZNEC program.
• No tuning antennas.
  Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up.
  Everything is labeled; just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties.
  We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



All 13cm and above antennas
