2300-2600LPDA7 WideBand Antenna on a PCB

High-Gain PCB Log Periodic 2300-2600LPDA7 WideBand Antenna for Mobile Communications.

Key Features:

• High Gain: Provides a free-space forward gain of 7.2 dBi on average.
• High Directivity: Features a Front-to-Back Ratio of about 20dB on average.
• Wideband characteristics: Works on all frequencies ranging from 2.3 GHz to 2.6 GHz.
• Maximum power up to 10W
• Excellent return loss (“RL”) over the whole range 2300 MHz – 2600 MHz
• Withstands high “G” acceleration
• Robust Construction: Built on a FR4 substrate with high rigidity.
• SMA Output connector
• Measures only 80 x 60 mm without connector



Common Applications:

• RF testing
• EMI (Electromagnetic Interference) testing and site surveys
• Wireless Research
• Direction finding
• For Wideband SDR receivers

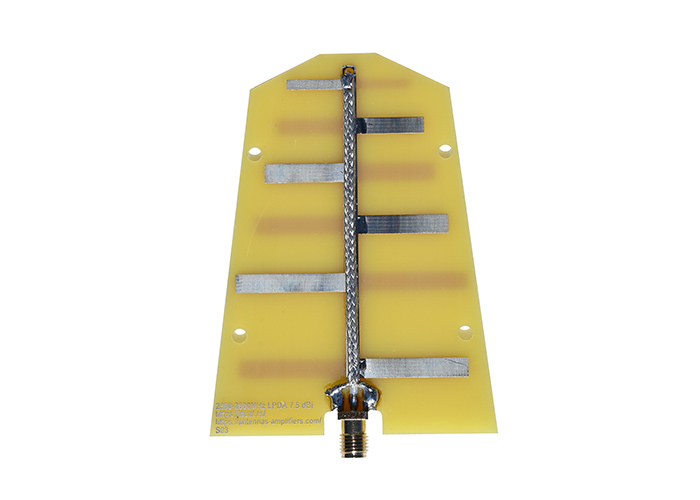

2300-2600LPDA7 WideBand Antenna Appearance:



What does 2300-2600LPDA7 mean?

• 2300-2600 – 2300 – 2600 MHz frequency range
• LPDA – Logarithmic Periodic Dipole Array Antenna
• 7 – 7.2 dBi gain on average



Electrical Specifications of 2300-2600LPDA7 WideBand Antenna:

Frequency Range: 2300 – 2600 MHz
Free Space Forward Gain: 6.8 to 7.5 dBi
Front-to-Back Ratio: 16 – 32 dB
-3 dB Horizontal Beamwidth: 66° – 68.4°
-3 dB Vertical Beamwidth: 97°- 109°
Polarization: Any
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 10W
Connector: SMA gold-plated



2300-2600LPDA7 WideBand Antenna Measured Return Loss:



2300-2600LPDA7 WideBand Antenna radiation patterns:

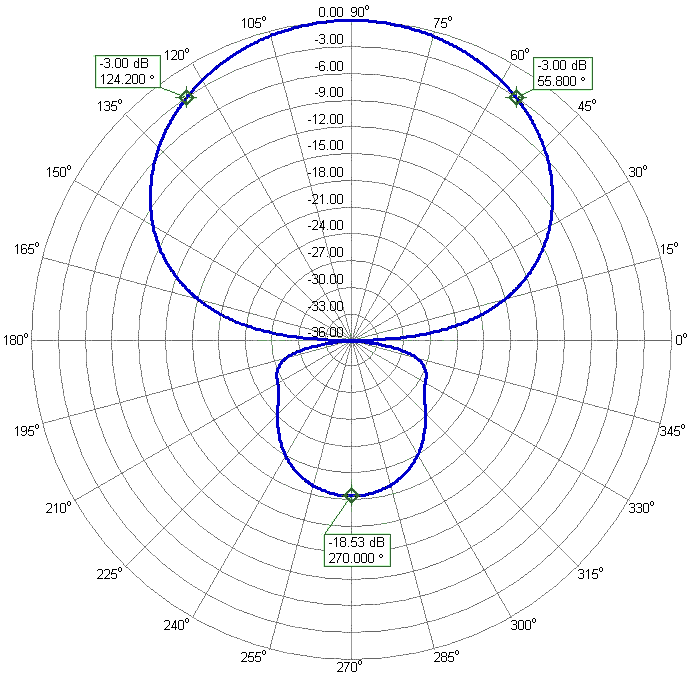

2300-2600LPDA7 2300MHz Azimuth Radiation Pattern. Gain 6.8 dBi

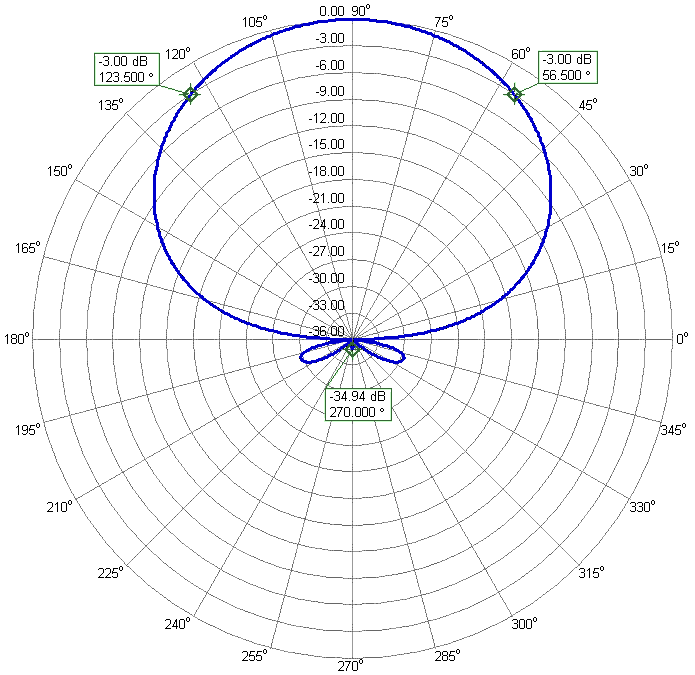

2300-2600LPDA7 2360MHz Azimuth Radiation Pattern. Gain 7.2 dBi

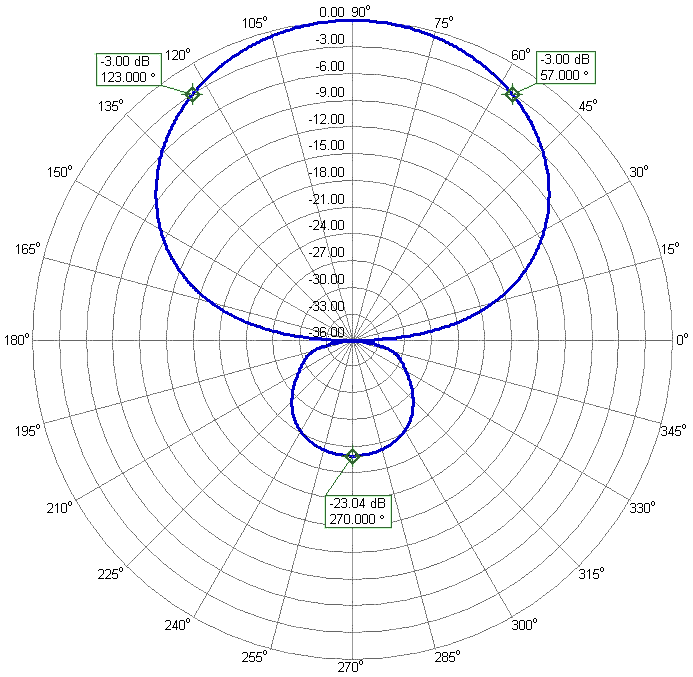

2300-2600LPDA7 2400MHz Azimuth Radiation Pattern. Gain 7.4 dBi

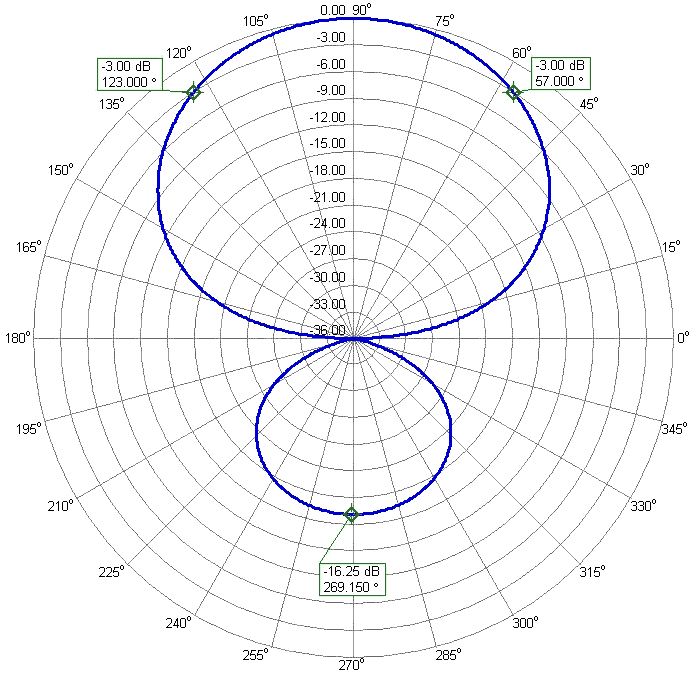

2300-2600LPDA7 2460MHz Azimuth Radiation Pattern. Gain 7.5 dBi.

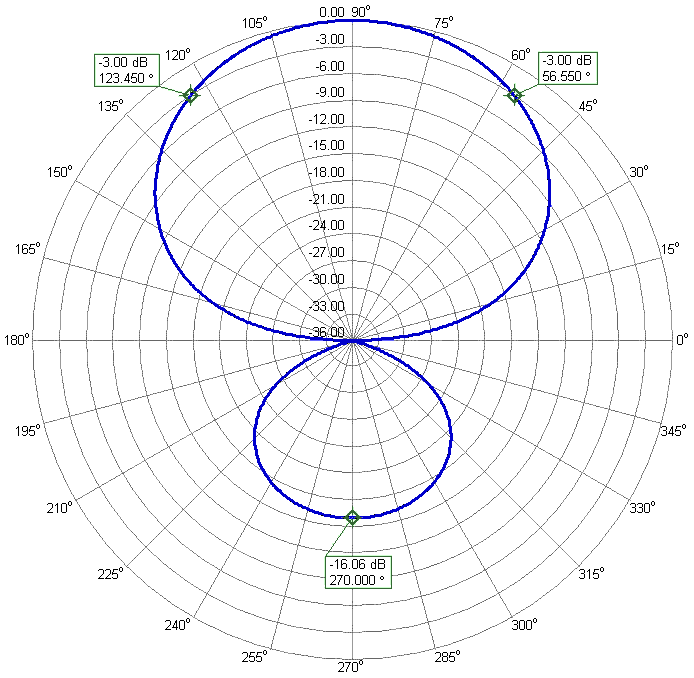

2300-2600LPDA7 Antenna 2500MHz Azimuth Radiation Pattern. Gain 7.45 dBi



2300-2600LPDA7 Antenna 2560MHz Azimuth Radiation Pattern. Gain 7.35 dBi

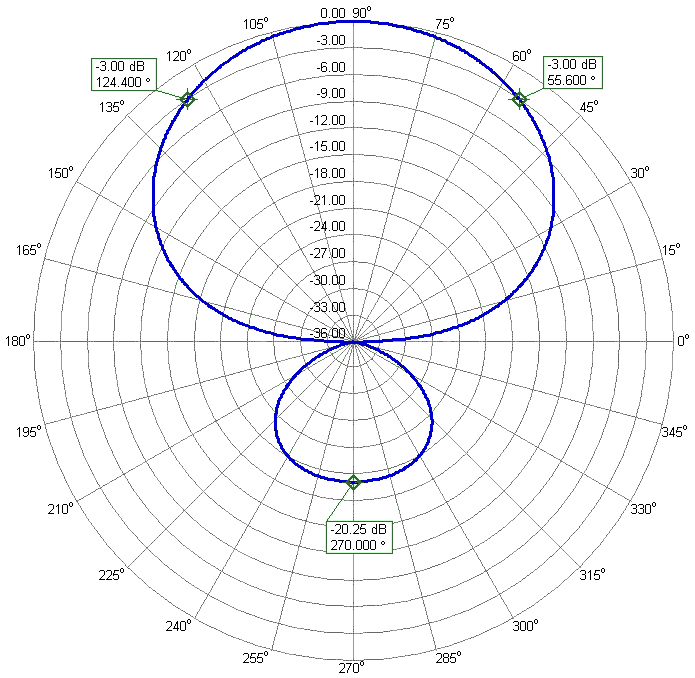

2300-2600LPDA7 WideBand Antenna 2620MHz Azimuth Radiation Pattern. Gain 7.3 dBi.





Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.
  All antennas have been calculated using state-of-the-art full 3D EM modeling software
• No tuning antennas.
  Before dispatch, we assemble and test each antenna’s characteristics — no need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.
