23cm 36element Heavy Duty Antenna 23cm36DXHDP Strong Construction

23cm 36element Heavy Duty Antenna 23cm36DXHDP is intended for use in strong wind locations. Now holds the current VK National record on 1296 MHz at 2458 km. Wideband operation 1290 – 1310 MHz. Excellent antenna for EME start or beat 23cm national tropo record.



23cm 36element Heavy Duty Antenna 23cm36DXHDP Strong Construction Appearance:



What does 23cm36DXHDP mean?

• 23cm – Frequency range from 1290 to 1310 MHz  or 1240-1310 MHz with low SWR
• 36 – 36 Elements
• DX– For use in the DX part of the band
• HD – Heavy Duty construction antenna
• P – Power version up to 300W



23cm36DXHDP could be produced in two versions:

• SKU:1920 23cm36DXHDP 1290-1310MHz, 20.4dBi, max power 300W (this antenna)
• SKU:1925 23cm36WHDP 1240-1310MHz, Wideband version

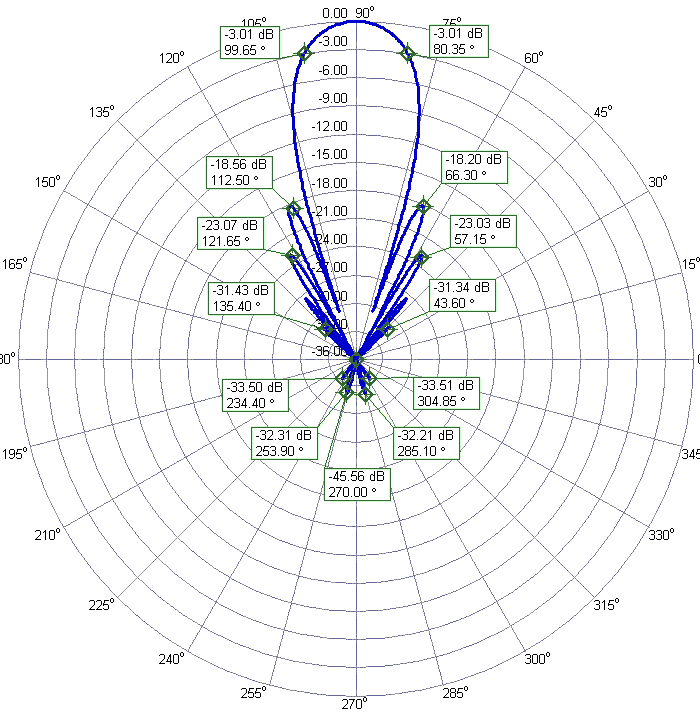

23cm 36element Heavy Duty Antenna 23cm36DXHDP Azimuth Radiation Pattern



Electrical Specifications of 23cm 36element Heavy Duty Antenna 23cm36DXHDP

Frequency Range: 1290 – 1310 MHz
Free Space Forward Gain: 20.4 dBi
Front-to-Back Ratio: 32 dB
-3 dB Horizontal Beamwidth: 19.3°
-3 dB Vertical Beamwidth: 19.7°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 300W
Matching Method: Voltage balun. UT141 or similar Teflon cable
Connector: “N”



23cm 36element Heavy Duty Antenna 23cm36DXHDP Measured SWR at antenna connector



Stacking Distances for 23cm36DXHDP

Horizontal: 650mm for F/S -13.6 dB and gain 23.2 dBi
Vertical: 650mm for F/S -13.6 dB and gain 23.2 dBi



Mechanical construction of 23cm Low Noise Competition Antenna 23cm36DXHDP

Strong bracket with two M8 clamps. All parts AISI316 (A4) Stainless Steel



Mechanical Specifications of 23cm Low Noise Competition Antenna 23cm36DXHDP

Number of elements: 36
Element Diameter: 4 mm Aluminum rod
Dipole Diameter: 3 mm Copper
Balun and Connector: Included
Longest element: 120 mm
Element Mounting Position: Above the Boom
Boom Length: 2.92 m
Boom: 20x20mm
The number of Boom Pieces: 3
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD, M8 Stainless Steel two clamps.
Survival Wind Speed: 150 km/h
Net Weight: 3 kg
Gross Weight: 4.65 kg
Transportation Length: 1.18 meters (Airplane Checked Baggage Length)



The antenna holds the current VK National distance record on 1296 at 2458 km from VK7 to ZL.

More about the new record you can find here.

More about stacking is here.

Standard version of this antenna is 23cm36DXP

The old name of the antenna was PA1296-36-3AUTHD



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.

• No tuning antennas.

Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.

• Easy to set up.

Everything is labeled, just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!

• Mechanical properties.

We believe that our antennas are the world’s strongest and are mechanically constructed much better than any antennas from other manufacturers.
