23cm Rear Mount Antenna 13elements 23cm13DXR 1290-1310MHz

Excellent relatively small 23cm Rear Mount Antenna 13elements 23cm13DXR. Good for portable or stationary use. It is good for any mount on the metal pipe or side of the tower. The antenna is tested before dispatch and comes fully assembled.



23cm Rear Mount Antenna 13elements 23cm13DXR Appearance:



What does 23cm13DXR mean?

• 23cm – Frequency range from 1290 to 1310 MHz with low SWR
• 13 – 13 Elements
• DX– For use in the DX part of the band
• R – Rear mount



The antenna could be produced in several versions:

• SKU: 1810 23cm13DXR  1290-1310 MHz (this antenna)
• SKU: 1811 23cm13DXRP  1290-1310 MHz (Power version 300W)
• SKU: 1815 23cm13WR  1240-1310 MHz (Wideband version)
• SKU: 1816 23cm13WRP  1240-1310 MHz (Wideband version 300W)
• SKU: 1820 23cm13WRV  1240-1310 MHz (Vertical polarization)
• SKU: 1821 23cm13WRPV  1240-1310 MHz (Vertical polarization 300W)

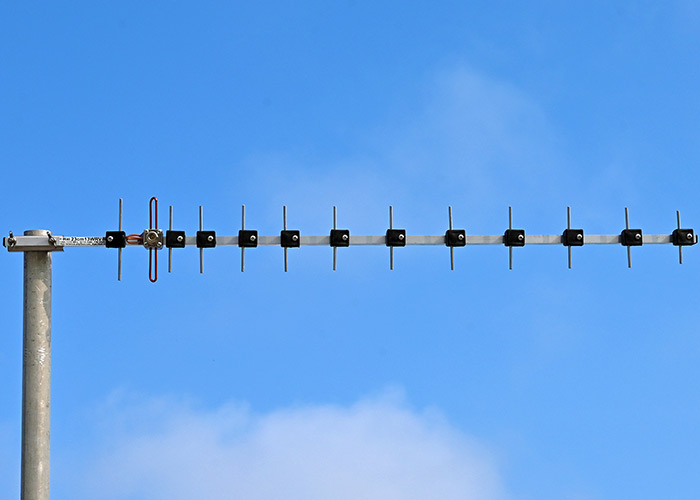

23cm Rear Mount Antenna Vertical Polarization 23cm13WRV



Electrical Specifications of 23cm Rear Mount Antenna 13elements 23cm13DXR

Frequency Range: 1290 – 1310 MHz
Free Space Forward Gain: 15.6 dBi
Front-to-Back Ratio: 26 dB
-3 dB Horizontal Beam-width: 30°
Polarization: Horizontal (Vertical by order)
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 100 W (more by request)
Matching Method: Voltage balun. RG-316 Teflon cable
Connector: “N”



Mechanical Specifications of 23cm Rear Mount Antenna 13elements 23cm13DXR

Number of Elements: 13
Element Diameter: 4 mm Aluminum rod
Dipole Diameter: 3 mm Copper
Longest Element: 120 mm
Element Mounting Position: Below the boom
Balun and Connectors: Included
Boom Length: 1 m
Boom Size: 20×20 mm
The number of Boom Pieces: 1
Mounting Mast Diameter: 30 – 50 mm 1-1/4″ – 2″ OD
Clamp: M6 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 0.47 kg
Gross Weight: 1.7 kg
Transportation Length: 1m

The old name of the antenna was PA1296-13-1RA



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.

• No tuning antennas.

Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

• Easy to set up.

Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!

• Mechanical properties.

We believe that our antennas are the world’s strongest and are mechanically constructed much better than any antennas from other manufacturers.



Check all 23cm antennas
