2m 11Elements Low Noise Contest Antenna 2m11DXP 144-145MHz

Perfect 2m 11Elements Low Noise Contest Antenna 2m11DXP for stationary use or to take on a portable location. Excellent flat SWR from 144-145MHz. Great for Terrestrial VHF Contest or EME work. Excellent G/T. Low Noise Design.

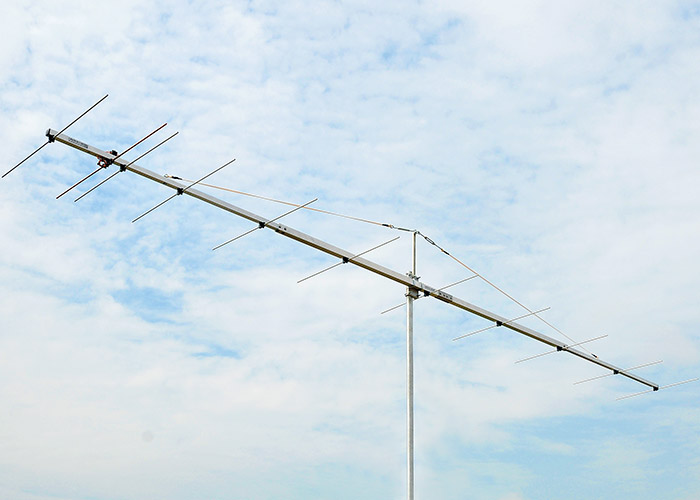

2m 11Elements Low Noise Contest Antenna 2m11DXP Appearance:



What does 2m11DXP mean?

• 2m – 2m band
• 11 – 11 elements
• DX – Covers DX part of 2m band 144-145MHz
• P – The default Power for the antenna is 1500W

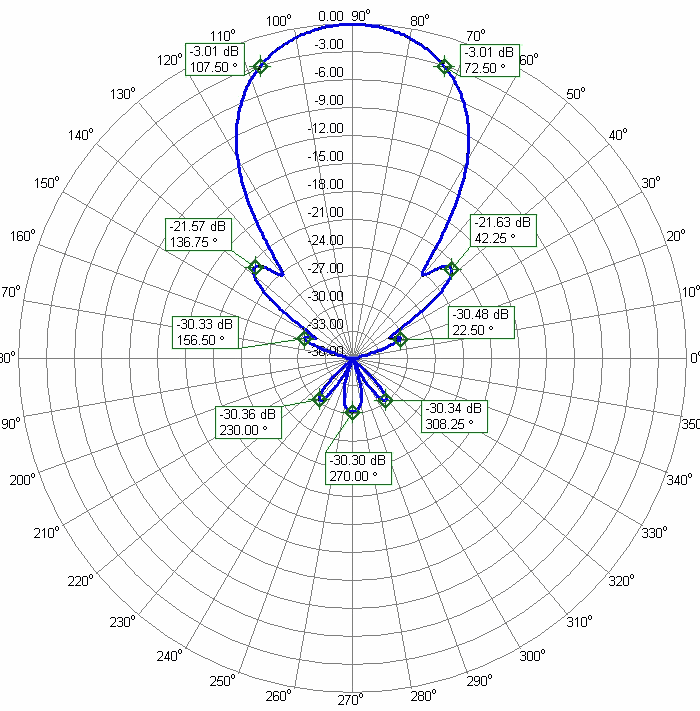

2m 11Elements Low Noise Contest Antenna 2m11DXP Azimuth Radiation Pattern



Electrical Specifications of 2m 11Elements Low Noise Contest Antenna 2m11DXP

Frequency Range: 144 – 145 MHz
Free Space Forward Gain: 14.8 dBi
Front-to-Back Ratio: 30 dB
-3 dB Horizontal Beamwidth: 35°
-3 dB Vertical Beamwidth: 38°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1500 W (more by request)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (or 7/16 DIN by request)



Power version of super low noise EME antenna 2m11DXP

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 2000W 2m11DXE
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 5000W 2m11DXEX



Mechanical Specifications of 2m 11Elements Low Noise Contest Antenna 2m11DXP

Number of elements: 11
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Balun and Connector: Included
Longest element: 1040 mm
Element Mounting Position: Below the Boom
Boom Length: 5.72 m
Tapered Boom: 40x40mm, 30x30mm
The number of Boom Pieces: 4
Turning Radius: 3.2 meter
Guy rope support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Included: “RA” bracket
Clamp: 2 x M8 Stainless Steel
Survival Wind Speed: 180 km/h
Net Weight: 7.6 kg
Gross Weight: 9 kg
Transportation Length: 1.49 m



Horizontal Stacking Distances for 2m 11Elements Low Noise Contest Antenna 2m11DXP

Two antennas 3.3m, Gain 17.7 dBi (+2.9 dB)
Four antennas 3.6m, Gain 20.8 dBi (+6 dB)



Vertical Stacking Distances for 2m 11Elements Low Noise Contest Antenna 2m11DXP

Two antennas 3.1m, Gain 17.72 dBi (+2.92 dB)
Four antennas 3.3m, Gain 20.8 dBi (+6 dB)



Stacking in “H” configuration for 4 x 2m11DXP

Four antennas Max gain H=3.25 m V=3.1 m for Gain 20.62 dBi (+5.82 dB)  for F/S -12.5 dB
Four antennas Low SIdeLobes (Urban)  H=2.88 m V=2.75 m for Gain 20.15 dBi (+5.35 dB) for F/S -17 dB



The old name of the antenna was PA144-11-6BGP

About the antenna read this review.



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.

• No tuning antennas.

Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

• Easy to set up.

Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!

• Mechanical properties.

We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.
