2m 24elements XPOL EME Antenna 2mXPOL24DXP

2m 24elements XPOL EME Antenna 2mXPOL24DXP

379,00

2m 24elements XPOL EME Antenna 2mXPOL24DXP. Contest Winning Antenna

SKU: 0990 Category:

Super Low Noise 2m 24elements XPOL EME Antenna 2mXPOL24DXP

Best of the best 12+12 elements 2m 24elements XPOL EME Antenna 2mXPOL24DXP on about 7.4m boom. Super gain and low noise proved by a couple of first places in EME contests. Four antennas in the “H” stack are the victorious combination to dig any weak EME or terrestrial signal as the most significant recipe to win.



2m 24elements XPOL EME Antenna 2mXPOL24DXP Appearance:

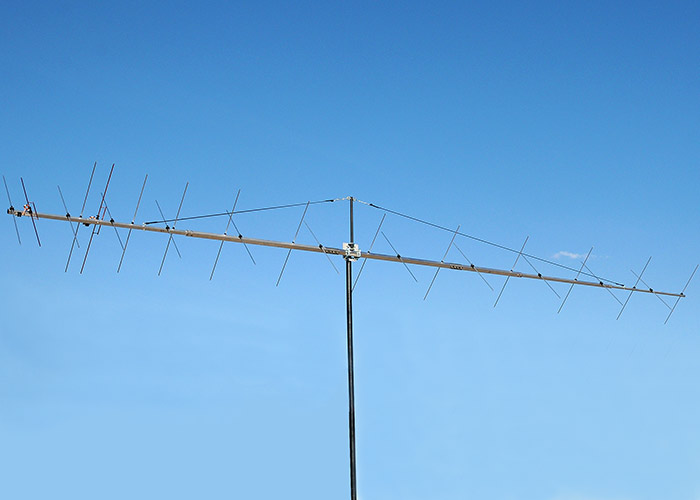

2m 24elements XPOL EME Antenna 2mXPOL24DXP



What does 2mXPOL24DXP mean?

  • 2m2m band
  • XPOL – a Yagi that has 2 sets of elements oriented in an “X” format. One set of elements is +45 degrees to the Earth, the other -45 degrees.
  • 24 – 24 elements
  • DX – For use in the DX part of the band 144-145MHz with perfect SWR
  • P – The default Power for the antenna is 1500W



Electrical Specifications of 2m 24elements XPOL EME Antenna 2mXPOL24DXP

Frequency Range: 144 – 145MHz
Free Space Forward Gain: 15.6dBi
Front-to-Back Ratio: 33dB
-3 dB Horizontal Beamwidth: 32.7° For Horizontal Polarization
-3 dB Vertical Beamwidth: 34.5° For Horizontal Polarization
G/T for Tsky=290K-Tearth=5400K: -4.46dB for Horizontal and -4.23dB for Vertical Polarization
Polarization: Horizontal, Vertical, RHCP, LHCP with phase shift
Distance Between Dipoles: 520mm
Degrees: 90°
Isolation Between Antennas: More than 30dB
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 3000W for both antennas
Matching Method: Direct feed through common mode choke (current balun)
Connectors: 2 x “N”



2m EME Contest Winning Antenna 2mXPOL24DXP Horizontal Polarization Azimuth Radiation Pattern

2m 24elements XPOL EME Antenna 2mXPOL24DXP Horizontal Polarization Azimuth Radiation Pattern



Power input option by order of 2m 24elements XPOL EME Antenna 2mXPOL24DXP

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 4000W 2mXPOL24DXE



2m 24elements XPOL EME Antenna 2mXPOL24DXP Horizontal Polarization Elevation Radiation Pattern

2m 24elements XPOL EME Antenna 2mXPOL24DXP Horizontal Polarization Elevation Radiation Pattern



Mechanical  Specifications of 2m 24elements XPOL EME Antenna 2mXPOL24DXP

Number of Elements: 24 (12 + 12)
Element Diameter: 8mm Aluminum tube
Dipole Diameter: 8mm Hard Copper tube plastic coated.
Longest Element: 1040mm
Element Mounting Position: Above the Boom. Slant configuration +-45 deg
Balun and Connectors: Included
Boom Length: 7.4m
Single Antenna Length: 6.83m
Boom Size: Tapered Boom 40x40mm, 30x30mm, 20x20mm
Number of Boom Pieces: 6
Guy rope support: Yes, Included
Mounting Mast Diameter: 43 – 70mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed: 150km/h
Net Weight: 12kg
Gross Weight: 14kg
Transportation Length: 1.5m



2m 24elements XPOL EME Antenna 2mXPOL24DXP Bracket and Support View

2m 24elements XPOL EME Antenna 2mXPOL24DXP Bracket and Support View



Measured SWR on finished 2m EME contest winning antenna 2mXPOL24DXP

2m EME Contest Winning Antenna 2mXPOL24DXPMeasured SWR



What about 2m 24elements XPOL EME Antenna 2mXPOL24DXP (old name PA144-XPOL-24-7BGP) say Conrad PA5Y

2019 ARRL EME Contest
I did the ARRL EME contest at the weekend and worked 27 of the 30 hours of available moon time. The score was VERY good. 151 QSO, 78 multipliers, 1,177,800 pts. Everything worked flawlessly even in heavy rain. I am pretty sure that there were no missed QSOs.
73 Conrad PA5Y



2m EME Contest Winning Antenna 2mXPOL24DXP System by PA5Y Four Antennas Stack



I have improved alignment on the moon. The TX performance is outstanding. I can always hear my echoes. I am often louder than many stations with bigger arrays, so I am very impressed. The RX is also one of the best in the band. The TX polarisation works perfectly, and my RX pol is also absolutely bang on.
Many thanks for producing yet another set of excellent antennas.

73 Conrad PA5Y



2m EME Contest Winning Antenna 2m24XPOL System by PA5Y



Achieved results say much more than words. PA5Y won the 2m ARRL EME contest in 2020, 2021 (432MHz), and 2022.

2020 – https://contests.arrl.org/certgen.php?id=547511&call=PA5Y

2021 – https://contests.arrl.org/certgen.php?id=573479&call=PA5Y

2022 – https://contests.arrl.org/certgen.php?id=623232&call=PA5Y



2m EME Contest Winning Antenna 2m24XPOL ARRL EME 2023 Results Winner PA5Y



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

  • F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
  • No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
  • Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
  • Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



Also, look more about EME expeditions here and here

Check all 2m antennas: 2m antennas
Horizontal or vertical antennas
2m CROSS antennas
2m XPOL antennas
