2m 70cm DualBand Antenna 2m70cm13W with common connector

Common connector for both bands high gain 2m 70cm DualBand Antenna 2m70cm13W. Wideband operation 144-146MHz and 430-440 MHz. Lightweight construction with 4mm elements. It is good as a long-range antenna with horizontal polarization or an FM antenna with vertical polarization.

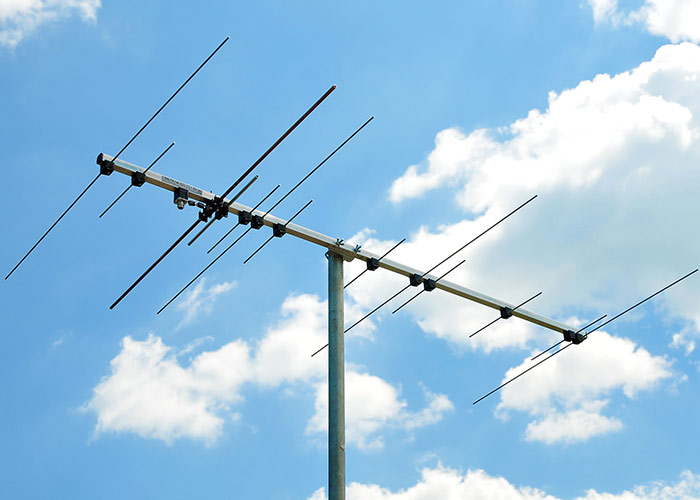

2m 70cm DualBand Antenna 2m70cm13W Appearance:



What does 2m70cm13W mean?

• 2m – Covers 144-146MHz
• 70cm – Covers 430-440MHz
• 13 – 13 elements. 5el for 2m and 8+1 element for 70cm
• W – Wideband version on both bands



2m 70cm DualBand Antenna 2m70cm13W 2m Azimuth Radiation Pattern



2m Electrical Specifications of 2m 70cm DualBand Antenna 2m70cm13W

Frequency Range: 144-146MHz
Free Space Forward Gain: 10.3dBi
Front-to-Back Ratio: 30 dB
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 100W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)



2m 70cm DualBand Antenna 2m70cm13W 70cm Azimuth Radiation Pattern



70cm Electrical Specifications of 2m70cm13W

Frequency Range: 430-440MHz
Free Space Forward Gain: 12.5dBi
Front-to-Back Ratio: 22 dB
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 50W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)



2m and 70cm mechanical specifications of 2m 70cm DualBand Antenna 2m70cm13W

2m Number of Elements: 5
70cm Number of Elements: 8+1
2m Elements Diameter: 4 mm rod
70cm Elements Diameter: 4 mm rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 1030 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 1.46 m
Boom Size: 20 x 20 mm
Number of Boom Pieces: 1
Turning Radius: 0.9 meter
Guy Rope Support: Not necessary. Strong boom
Mounting Mast Diameter: 30 – 50 mm 1-1/4 – 2″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 1.4 kg
Gross Weight: 2.3 kg
Transportation Length: 1.5m

The old name of the antenna was PA144-432-13-1.5B



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
• No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.
