2m 70cm DualBand Antenna 2m70cm17WA 17Elements

SKU: 1220 Category:

2m 70cm DualBand Antenna 2m70cm17WA 17Elements

Single connector for both bands 2m 70cm DualBand Antenna 2m70cm17WA with 17 elements. Covers 144-146MHz and 430-440MHz. Lightweight construction with 4mm elements and boom length less than 2m. It is good as a long-range antenna with horizontal polarization or an FM antenna with vertical polarization. The packed size of just 1.2m fits perfectly in a car or airplane.



2m 70cm DualBand Antenna 2m70cm17WA 144-146 and 430-440MHz Appearance:

2m 70cm DualBand Antenna 2m70cm17WA



What does 2m70cm17WA mean?

  • 2m – Covers 144-146MHz
  • 70cm – Covers 430-440MHz
  • 1717 elements. 6el for 2m and 11+1 element for 70cm
  • W – Wideband version on both bands
  • A – Boom or element parts length up to 118cm or 47″ (for ANY transport)

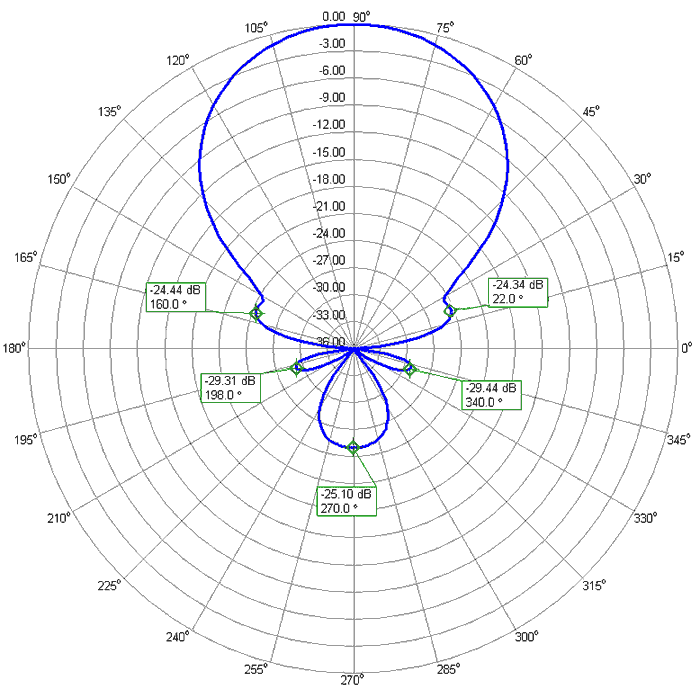

2m 70cm DualBand Antenna 2m70cm17WA 2m Azimuth Radiation Pattern

2m 70cm DualBand Antenna 2m70cm17WA 2m Azimuth Radiation Pattern



2m Electrical Specifications of 2m 70cm DualBand Antenna 2m70cm17WA

Frequency Range: 144-146MHz
Free Space Forward Gain: 11.2dBi
Front-to-Back Ratio: 26 dB
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 100W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)

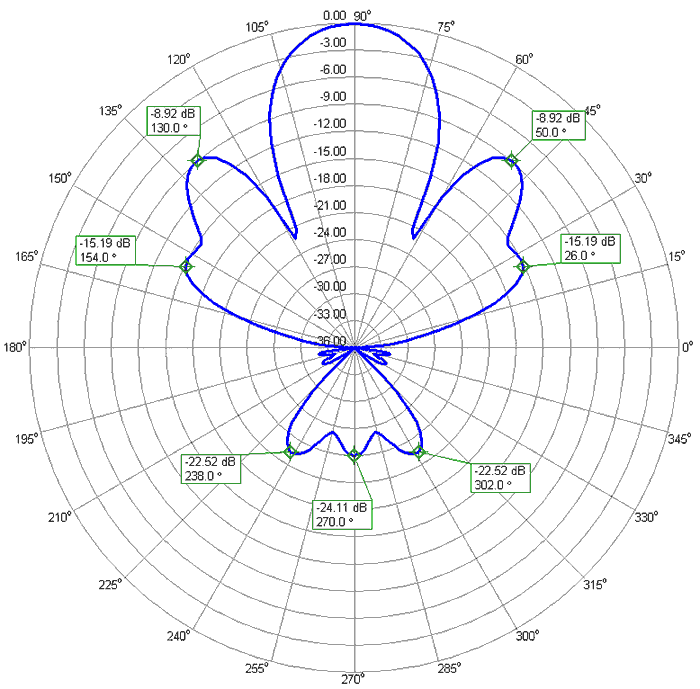

2m 70cm DualBand Antenna 2m70cm17WA 70cm Azimuth Radiation Pattern

2m 70cm DualBand Antenna 2m70cm17WA 70cm Azimuth Radiation Pattern



70cm Electrical Specifications of 2m70cm17WA

Frequency Range: 430-440MHz
Free Space Forward Gain: 13.7dBi
Front-to-Back Ratio: 24 dB
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 50W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)



2m and 70cm mechanical specifications of 2m 70cm DualBand Antenna 2m70cm17WA

2m Number of Elements: 6
70cm Number of Elements: 11+1
2m Elements Diameter: 4 mm rod
70cm Elements Diameter: 4 mm rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 1030 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 2 m
Boom Size: 20 x 20 mm
Number of Boom Pieces: 2
Turning Radius: 1.2 meter
Guy Rope Support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 1.9 kg
Gross Weight: 2.5 kg
Transportation Length: 1.2m

The old name of the antenna was PA144-432-17-2A
