High Gain 2m 70cm DualBand Antenna 2m70cm38DXP

Single connector 2m 70cm DualBand Antenna 2m70cm38DXP with very high gain. It behaves as two high-gain mono-band antennas, saving your valuable space on the tower for another band. Perfect for tropo DX-ing or portable use with just a transceiver. Wideband operation 144-146MHz and 432-434MHz. 2m has 11 active elements, and 70cm has 27+1 active elements. Because of its quality construction and easy assembly, this antenna is suitable for portable use and two-band contesting with one transceiver.

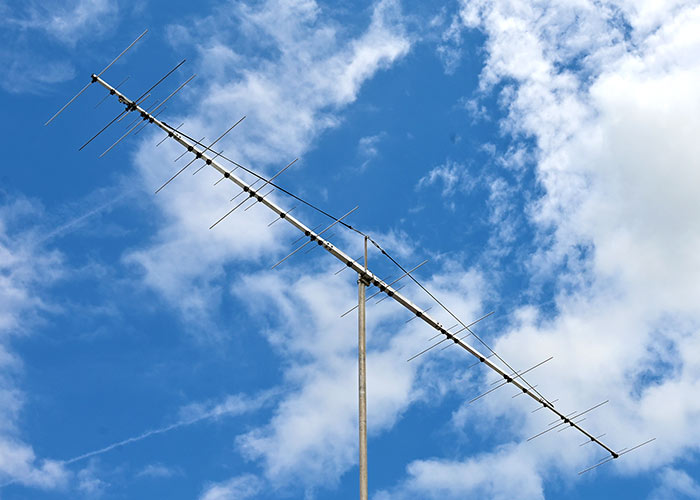

2m 70cm DualBand Antenna 2m70cm38DXP Appearance:



What does 2m70cm38DXP mean?

• 2m – Covers 144-146MHz
• 70cm – Covers 432-434MHz
• 38 – 38 elements. 11el for 2m and 27+1 element for 70cm
• Covers DX part of the 70cm band and 144-146MHz on the 2m band



2m Electrical Specifications of 2m 70cm DualBand Antenna 2m70cm38DXP

Frequency Range: 144-146MHz
Free Space Forward Gain: 15 dBi
Front-to-Back Ratio: 28dB
-3 dB Horizontal Beamwidth: 33.1°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 750W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)

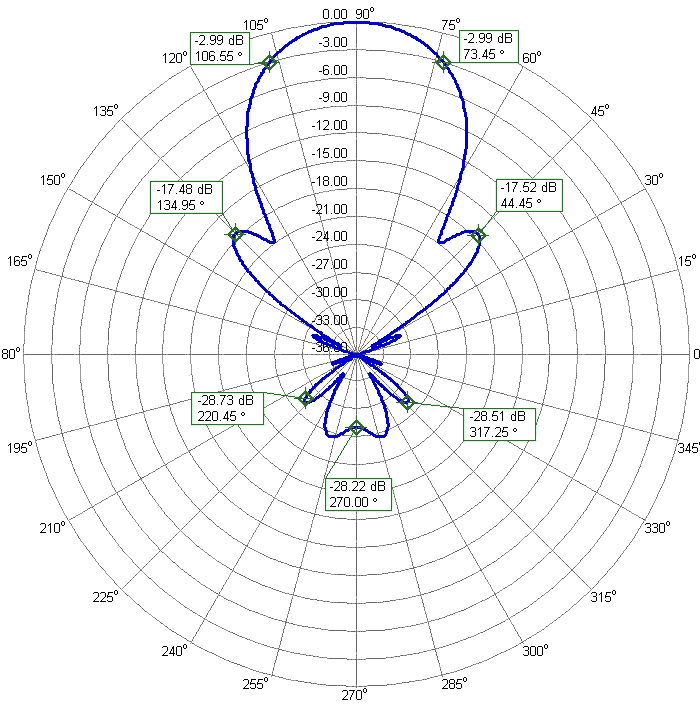

2m 70cm DualBand Antenna 2m70cm38DXP 2m Azimuth Radiation Pattern



70cm Electrical Specifications of 2m70cm38DXP Antenna

Frequency Range: 432-434MHz
Free Space Forward Gain: 17.2dBi
Front-to-Back Ratio: 29 dB
-3 dB Horizontal Beamwidth: 20.4°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 700W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)



2m 70cm DualBand Antenna 2m70cm38DXP 70cm Azimuth Radiation Pattern



2m and 70cm mechanical specifications of 2m70cm38DXP

2m Number of Elements: 11
70cm Number of Elements: 27+1
2m Elements Diameter: 8 mm aluminum pipe
70cm Elements Diameter: 4 mm rod
Dipole Diameter: 8 mm Hard Copper tube, plastic coated (Common dipole for both bands)
Longest Element: 1030 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 5.84 m
Tapered Boom: 40×40 mm, 30×30 mm, 20×20 mm
Number of Boom Pieces: 5
Turning Radius: 3.5m
Guy Rope Support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2 x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 8.1 kg
Gross Weight: 9.4 kg
Transportation Length: 1.5 m



2m 70cm DualBand Antenna 2m70cm38DXP Measured 2m Antenna SWR



2m70cm38DXP Measured 70cm Antenna SWR



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.

• No tuning antennas.

Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

• Easy to set up.

Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!

• Mechanical properties.

We believe that our antennas are the world’s strongest and are mechanically constructed much better than any antennas from other manufacturers.

The old name of the antenna was PA144-432-38-6BG
