2m 70cm DualBand Antenna Rear Mount 2m70cm8WR Common Connector

Small lightweight 2m 70cm DualBand Antenna Rear Mount 2m70cm8WR with wideband characteristics. It is good for mounting on the balcony or taking on portable. It could be produced in two versions EU 144-146MHz and 430-440 MHz or US version 144-148 and 430-450MHz. It is good as a small long-range antenna with horizontal polarization or an FM antenna with vertical polarization.



2m 70cm DualBand Antenna Rear Mount 2m70cm8WR Appearance:



What does 2m70cm8WR mean?

• 2m – Covers 144-146MHz or 144-148MHz frequency range
• 70cm – Covers 430-440MHz or 430-450MHz frequency range
• 8 – 8 elements
• W – Wideband version on both bands
• R – Rear mount



2m70cm8WR could be produced in two versions:

• SKU:1100 2m70cm8WR  for the IARU Region 1 144-146 and 430-440 MHz (this antenna)
• SKU:1105 2m70cm8WideR for the IARU Region2 and Region3 144-148 and 430-450 MHz

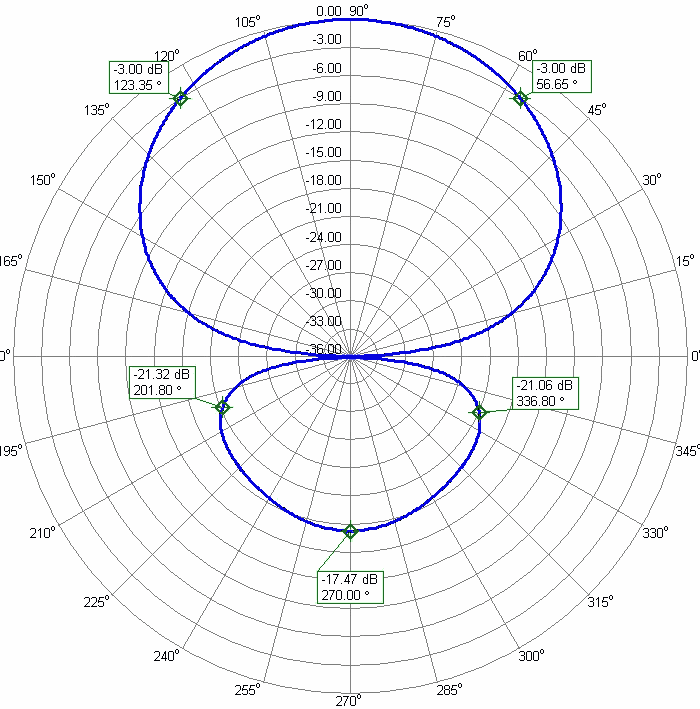

2m 70cm DualBand Antenna Rear Mount 2m70cm8WR 2m Azimuth Radiation Pattern



2m Electrical Specifications of 2m 70cm DualBand Antenna Rear Mount 2m70cm8WR

Frequency Range: 144-146MHz (or 144-148MHz)
Free Space Forward Gain: 6.8dBi
Front-to-Back Ratio: 17 dB
-3 dB Horizontal Beamwidth: 66.7°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 100W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)

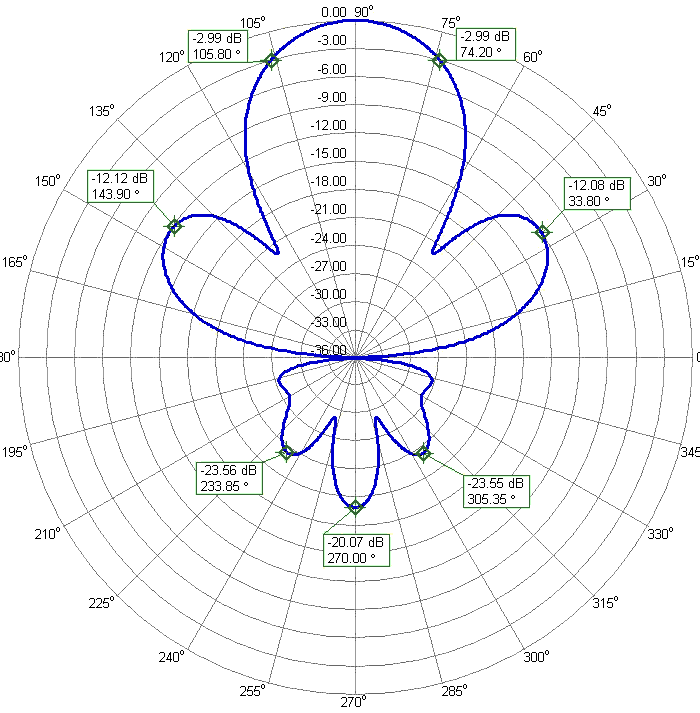

2m 70cm DualBand Antenna Rear Mount 2m70cm8WR 70cm Azimuth Radiation Pattern



70cm Electrical Specifications of 2m70cm8WR

Frequency Range: 430-440MHz or 430-450MHz
Free Space Forward Gain: 11.3dBi
Front-to-Back Ratio: 20 dB
-3 dB Horizontal Beamwidth: 31.6°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 50W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)



2m and 70cm mechanical specifications of 2m70cm8WR

2m Number of Elements: 3
70cm Number of Elements: 5+1
2m Elements Diameter: 4 mm rod
70cm Elements Diameter: 4 mm rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 1030 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 0.9 m
Boom Size: 20 x 20 mm
Number of Boom Pieces: 1
Turning Radius: 0.9 meter
Guy Rope Support: Not necessary. Strong boom
Mounting Mast Diameter: 30 – 50 mm 1-1/4 – 2″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 1 kg
Gross Weight: 2 kg
Transportation Length: 1m

The old name of the antenna was PA144-432-8-09RA



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
• No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.
