2m 70cm DualBand High Power Antenna 2m70cm36DXP

2m 70cm DualBand High Power Antenna 2m70cm36DXP

269,00

2m 70cm DualBand High Power Antenna 2m70cm36DXP EME Power 36elements

2m 70cm DualBand High Power Antenna 2m70cm36DXP EME Power

2m 70cm DualBand High Power Antenna 2m70cm36DXP EME power behaves as two high-gain mono-band antennas. Save your valuable space on the tower for another band. Maximum power input 1000W on 2m with 11 active elements and 750W on 70cm with 25+1 active element. Because of quality construction with easy assembly, this antenna is suitable for portable use and two bands contesting with one transceiver. Two or four antennas in a stack are efficient for competition and EME communications. Easy Moon Bounce on a single call and both bands.



2m 70cm DualBand High Power Antenna 2m70cm36DXP EME Power Appearance:

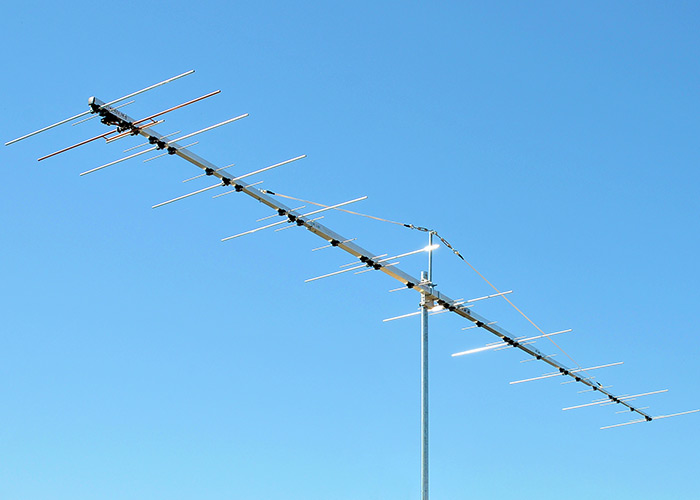

2m 70cm DualBand High Power Antenna 2m70cm36DXP

Sturdy construction with guy rope support and high durability. Built without compromise.



What does 2m70cm36DXP mean?

  • 2m – Covers 144-146MHz frequency range
  • 70cm – Covers 432-434MHz frequency range
  • 36 – 36 elements. 11 elements on 2m and 25+1 element on 70cm
  • DX – Covers DX part of the 70cm band and 144-146MHz on the 2m band
  • P – High Power version of the antenna. 1000W on 2m and 750W on 70cm



2m70cm36DXP could be produced in two versions:

  • SKU:1350 2m70cm36DXP (this antenna)
  • SKU:1360 2m70cm36DXAP by order. Boom or element parts length up to 118cm or 47″ (for ANY transport)



2m Electrical Specifications of 2m 70cm DualBand High Power Antenna 2m70cm36DXP

Frequency Range: 144-146MHz
Free Space Forward Gain: 15.1 dBi
Front-to-Back Ratio: 31dB
-3 dB Horizontal Beamwidth: 33.5°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 1000W
Matching Method: Voltage Balun
Connector: “N” (Common connector for both bands)

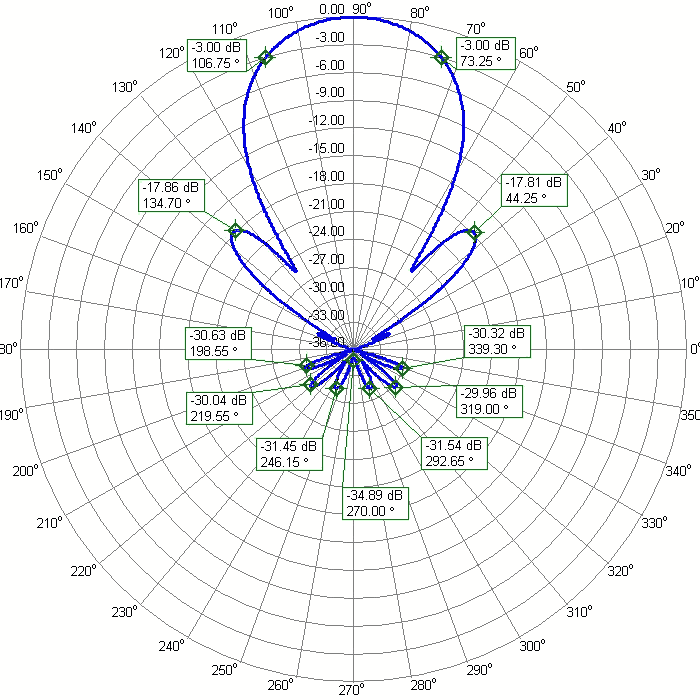

2m 70cm DualBand High Power Antenna 2m70cm36DXP 2m Azimuth Radiation Pattern

2m 70cm DualBand High Power Antenna 2m70cm36DXP 2m Azimuth Radiation Pattern



70cm Electrical Specifications of 2m 70cm DualBand High Power Antenna 2m70cm36DXP

Frequency Range: 432 – 434MHz
Free Space Forward Gain: 17.2dBi
Front-to-Back Ratio: 27dB
-3 dB Horizontal Beamwidth: 20.55°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 750W
Matching Method: Voltage Balun
Connector: “N” (Common connector for both bands)



2m 70cm DualBand High Power Antenna 2m70cm36DXP 70cm Azimuth Radiation Pattern

2m 70cm DualBand High Power Antenna 2m70cm36DXP 70cm Azimuth Radiation Pattern



2m and 70cm mechanical specifications of 2m70cm36DXP

2m Number of Elements: 11
70cm Number of Elements: 25+1
2m Elements Diameter: 8 mm aluminum pipe
70cm Elements Diameter: 4 mm rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated (Common dipole for both bands)
Longest Element: 1030 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 5.84 m
Tapered Boom: 40×40 mm, 30×30 mm, 20×20 mm
Number of Boom Pieces: 5
Turning Radius: 3.6m
Guy Rope Support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2 x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 8.1 kg
Gross Weight: 9.4 kg
Transportation Length: 1.5 m (1.2m by order)



2m70cm36DXP Measured 2m SWR on the finished antenna:

2m 70cm DualBand High Power Antenna 2m70cm36DXP 70cm Measured 2m SWR



2m70cm36DXP Measured 70cm SWR on the finished antenna:

2m 70cm DualBand High Power Antenna 2m70cm36DXP 70cm Measured 70cm SWR



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

  • F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
  • No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
  • Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
  • Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.

The old name of the antenna was PA144-432-36-6BGP



All 2 meter / 70 cm antennas: 2m/70cm antennas
2m / 70cm Common Connector antenna
2m / 70cm Two Connector Dual Band



Weight 9,1 kg
Dimensions 149 × 21 × 12 cm
