3-Band 6m 2m Antenna 6m2m24DXW-3C DXing Contesting FM

The biggest 3-Band 6m 2m Antenna 6m2m24DXW-3C with 24 elements. Has three independent connectors: one for the 6m band, another for 2m DXing, and the third for 2m FM vertical polarization. It is good for chasing DXes, contesting, EME, and for FM repeaters or simplex operations in the range 144-146 or 144-148MHz by order. If you have an HF antenna on the tower and just 2m more mast, this antenna is the right choice to expand to three more bands with limited tower space. The 6m part of the antenna is almost identical to 6m6DX even sharing the same boom length.



3-Band 6m 2m Antenna 6m2m24DXW-3C appearance:



What does 6m2m24DXW-3C mean?

• 6m – 6m band
• 2m – 2m band
• 24 – 24 Elements. 6 elements for 6m, 10 elements for 2m DX and 8 elements for FM Vertical polarization
• DX – Intended for use on DX parts of the bands. 50-50.5MHz and 144-145MHz
• W – Wideband part vertical polarization 144-146MHz or 144-148MHz by order
• 3C – 3Connectors. One connector for a 6m band, second for a 2m DX, and third for FM



Antenna could be produced in two versions:

• SKU:0226 6m2m24DXW-3C 50-50.5MHz, 144-145MHz DX, 144-146MHz FM vertical polarization (this antenna)
• SKU:0227 6m2m24DXWide-3C 50-50.5MHz, 144-145MHz DX, 144-148MHz FM vertical polarization



6m Electrical specifications of 3-Band 6m 2m Antenna 6m2m24DXW-3C

Frequency Range: 50-50.5MHz
Free Space Forward Gain: 11.4dBi
Front-to-Back Ratio: 28dB
-3 dB Horizontal Beamwidth: 47.2°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 1500W (by request “E” 3500W version or more)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”



6m Power input options by order of 6m2m24DXW-3C

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 3500W 6m2m24DXWE-3C
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 8000W 6m2m24DXWEX-3C



3-Band 6m 2m Antenna 6m2m24DXW-3C. 6m Excellent Azimuth Radiation Pattern



2m DX electrical specifications of 3-Band 6m 2m Antenna 6m2m24DXW-3C

Frequency Range: 144-145MHz
Free Space Forward Gain: 13.7dBi
Front-to-Back Ratio: 29dB
-3 dB Horizontal Beamwidth: 39.9°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 1500W (by request “E” 2000W version or more)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”



2m DX power input options by order of 6m2m24DXW-3C

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 2000W 6m2m24DXWE-3C
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 5000W 6m2m24DXWEX-3C



3-Band antenna 6m2m24DXW-3C 2m DX Azimuth Radiation Pattern



2m FM (Vertical Polarization) electrical specifications of 6m2m24DXW-3C

Frequency Range: 144-146MHz or 144-148MHz by order
Free Space Forward Gain: 12.6dBi
Front-to-Back Ratio: 28dB
-3 dB Horizontal Beamwidth: 42.2°
Polarization: Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 500W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”

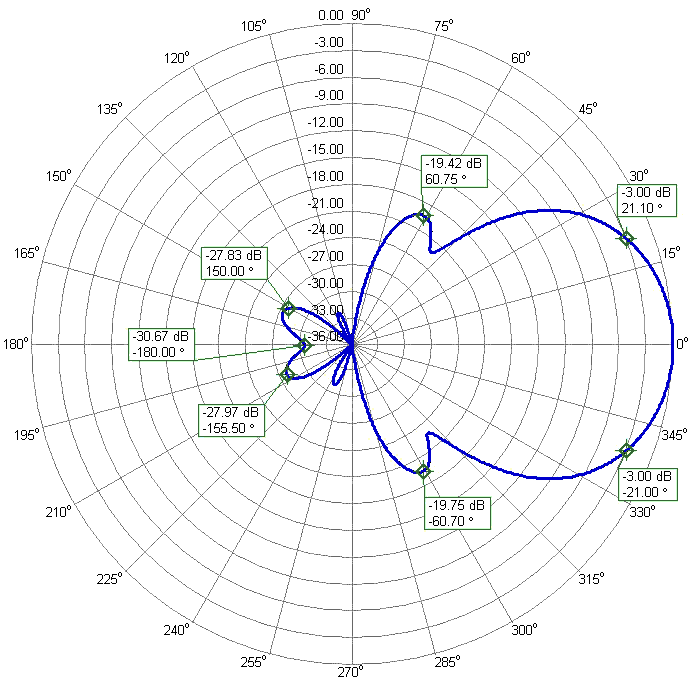

3-Band 6m 2m Antenna 6m2m24DXW-3C 2m FM Radiation Pattern



6m DX Mechanical Specifications of 3-Band 6m 2m Antenna 6m2m24DXW-3C

Number of Elements: 6
Element Diameter: Tapered elements. Center tube 12mm, extensions 10 and 8mm
Dipole Diameter: Tapered dipole. Center tube 12mm, extensions 10 and 8mm
Longest Element: 3.1 m
Element Mounting Position: Below the boom
Balun and Connector: Included



2m DX Mechanical Specifications of 3-Band 6m 2m Antenna 6m2m24DXW-3C

Number of Elements: 10
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 1030 mm
Element Mounting Position: Above the Boom
Balun and Connector: Included



2m FM Mechanical Specifications of 3-Band 6m 2m Antenna 6m2m24DXW-3C

Number of Elements: 8
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 1030 mm
Element Mounting Position: On a side
Balun and Connector: Included



Common mechanical characteristics of 6m2m24DXW-3C

Boom Length: 5.94 m
Tapered Boom 40×40 mm, 30×30 mm, 20×20 mm
Turning Radius: 3.5 m
Number of Boom Pieces: 5
Guy rope support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight:  9.7 kg
Gross Weight:  11.2 kg
Transportation Length: 1.5 m



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.

• No tuning antennas.

Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

• Easy to set up.

Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!

• Mechanical properties.

We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.
