6m 4m DualBand SuperYagi Antenna 6m4m17DX-2C 17 elements

Ultimate 6m 4m DualBand SuperYagi Antenna 6m4m17DX-2C 17 elements with separate 6m and 4m connectors.
The longest and highest-gain dual-band antenna for 50 MHz and 70 MHz DXing, contesting, and EME. 8 elements for 6m and 9 elements for the 4m band will produce superb booming signals with 59+ reports on both bands. Two antennas on a single boom behave as two mono-band antennas.

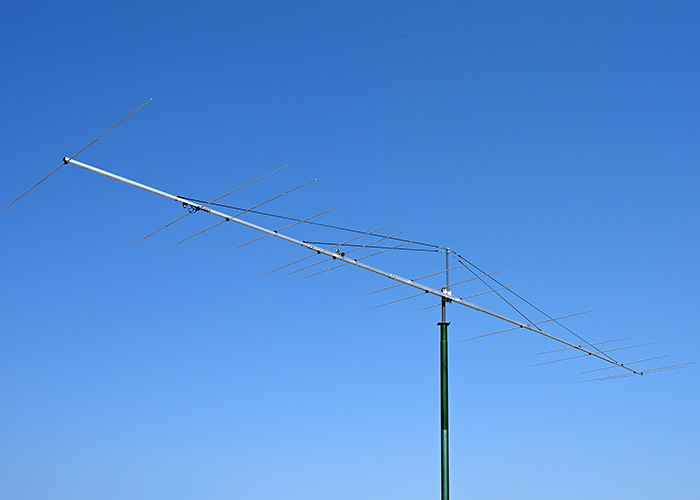

6m 4m DualBand SuperYagi Antenna 6m4m17DX-2C Appearance:



What does 6m4m17DX-2C mean?

• 6m – 6m band
• 4m – 4m band
• 17 – 17 elements. 8 elements for 6m and 9 elements for 4m band
• DX – For use in the DX part of the bands 50-50.5MHz and 70-70.5 MHz with perfect SWR
• 2C – 2Connectors. One connector for a 6m band, second connector for a 4m band



6m Electrical specifications of 6m 4m DualBand SuperYagi Antenna 6m4m17DX-2C

Frequency Range: 50-50.5 MHz
Free Space Forward Gain: 13.7 dBi
Front-to-Back Ratio: 29 dB
-3 dB Horizontal Beamwidth: 38.5°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1500W (more by request)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (7/16DIN by request)

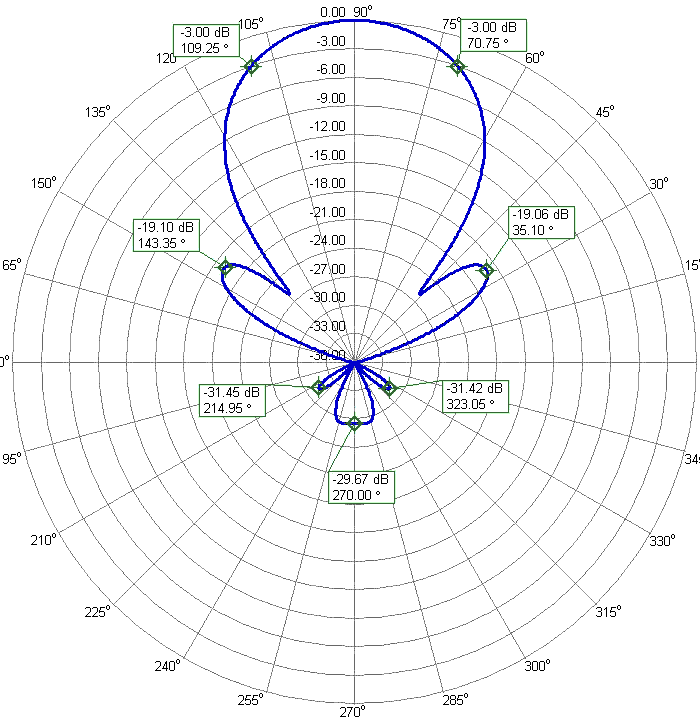

DualBand SuperYagi Antenna 6m4m17DX-2C 6m Azimuth Radiation Pattern



4m Electrical specifications of DualBand SuperYagi Antenna 6m4m17DX-2C

Frequency Range: 70-70.5 MHz
Free Space Forward Gain: 13.9 dBi
Front-to-Back Ratio: 30 dB
-3 dB Horizontal Beamwidth: 35.6°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1500W (more by request)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (7/16DIN by request)



DualBand SuperYagi Antenna 6m4m17DX-2C 4m Azimuth Radiation Pattern



Power input options by order of DualBand SuperYagi Antenna 6m4m17DX-2C

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 2500W for both bands 6m4m17DXE-2C
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 7500W for both bands 6m4m17DXEX-2C



6m Mechanical Specifications of the SuperYagi Antenna 6m4m17DX-2C

Number of Elements: 8
Tapered elements. Center tube 12mm, next 10mm, and last 8mm
Tapered dipole. Center tube 12mm, next 10mm, and last 8mm
Balun and Connector: Included
Longest Element: 3.1m
Element Mounting Position: Below the boom



6m 4m DualBand SuperYagi Antenna 6m4m17DX-2C Measured 6m Antenna SWR



4m Mechanical Specifications of the DualBand Antenna 6m4m17DX-2C

Number of Elements: 9
Tapered elements. Center tube 12mm, extensions 10mm
Tapered dipole. Center tube 12mm, extensions 10mm
Balun and Connector: Included
Longest Element: 3.1m
Element Mounting Position: Above the boom



6m 4m DualBand SuperYagi Antenna 6m4m17DX-2C Measured 4m Antenna SWR



Common mechanical specifications of 6m4m17DX-2C

Number of Elements: 17
Boom Length: 11.74m
Tapered boom: 50 x 50 mm 40 x 40 mm, 30 x 30 mm, 20 x 20mm
Turning Radius: 7.5m
The Number of Boom Pieces: 8
Double Guy rope support: Yes, included
Mounting Mast Diameter: 50 – 70 mm or more by request
Clamp: 3x M12 AISI 316L (A4) Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 19 kg
Gross Weight: 22 kg
Transportation Length: 2m



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.
  All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, significantly outperforming those designed with the EZNEC program.
• No tuning antennas.
  Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up.
  Everything is labeled, just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties.
  We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.
