70cm WideBand Antenna Rear Mount 70cm8WR 430-440MHz or 430-450MHz

Small portable or balcony 70cm WideBand Antenna Rear Mount 70cm8WR 430-440MHz or 430-450MHz. Suitable for DXing in stacks of four or eight antennas, or in vertical polarization for repeaters. Weight less than 1kg.



70cm WideBand Antenna Rear Mount 70cm8WR 430-440MHz or 430-450MHz



What does 70cm8WR mean?

• 70cm – 70cm band
• 8 – 8 elements
• W – Wideband version. Covers 430-440 or 430-450MHz with low SWR
• R – Rear mount antenna



Antenna could be produced in these versions:

• SKU:1500 70cm8WR 430-440MHz (this antenna)
• SKU:1502 70cm8WRV 430-440MHz (Vertical polarization)
• SKU:1504 70cm8WideR 430-450MHz (Wide frequency range USA Region 2 Horizontal polarization)
• SKU:1506 70cm8WideRV 430-450MHz (Wide frequency range USA Region 2 Vertical polarization)

Order any of the above versions with an “RA” bracket for easy horizontal to vertical polarization rotation.

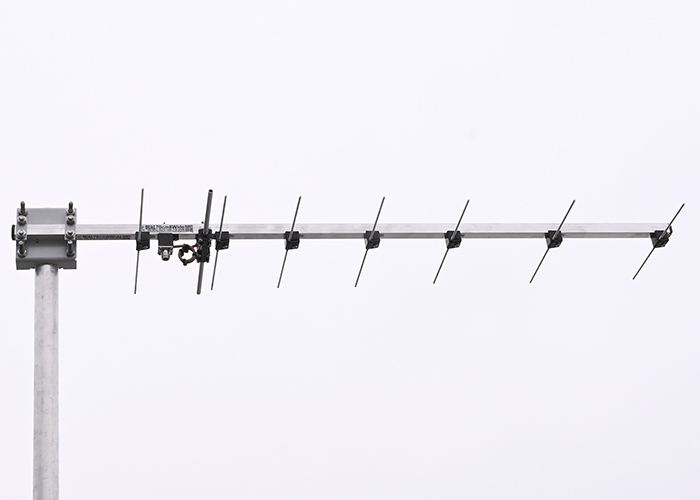

70cm WideBand Antenna Rear Mount 70cm8WR RA Bracket Option





Electrical Specifications of 70cm WideBand Antenna Rear Mount 70cm8WR

Frequency Range: 430 – 440 MHz (by order 430-450MHz)
Free Space Forward Gain: 12.8 dBi
Front-to-Back Ratio: 25 dB
-3 dB Horizontal Beamwidth: 40.5°
Polarization: Horizontal or vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 850W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”



70cm WideBand Antenna Rear Mount Vertical Polarization 70cm8WideV



Mechanical Specifications of 70cm WideBand Antenna Rear Mount 70cm8WR

Number of elements: 8
Element Diameter: 4 mm Aluminum rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest element: 340 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 1.18 m
Boom Size: 20 x 20 mm
The number of Boom Pieces: 1
Guy rope support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed: 150 km/h
Net Weight: 0.9 kg
Gross Weight: 1.7 kg
Transportation Length: 120 cm

The old name of the antenna was PA432-8-1.2RA



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.

• No tuning antennas.

Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.

• Easy to set up.

Everything is labeled, just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!

• Mechanical properties.

We believe that our antennas are the world’s strongest and are mechanically constructed much better than any antennas from other manufacturers.
