Double DualBand 2m 70cm Antenna 2x2m70cmHV20 with Horizontal and Vertical Polarization

World’s first ever produced 144-146MHz and 430-440MHz Double DualBand 2m 70cm Antenna 2x2m70cmHV20.

• Four antennas on the same boom.
• Horizontal polarization, common connector, DualBand 2m/70cm antenna with 4 + 7 elements, 144-146MHz and 430-440MHz
• Vertical polarization, common connector, DualBand 2m/ 70cm antenna with 4 + 5 elements, 144-146MHz and 430-440MHz

Lightweight DualBand long-range antenna with rear mount. It is good for mounting on the balcony or for taking on the go. Good for DX-ing on horizontal polarization or FM Simplex or repeater use in vertical polarization on both bands. Universal antenna for any situation that will serve you.

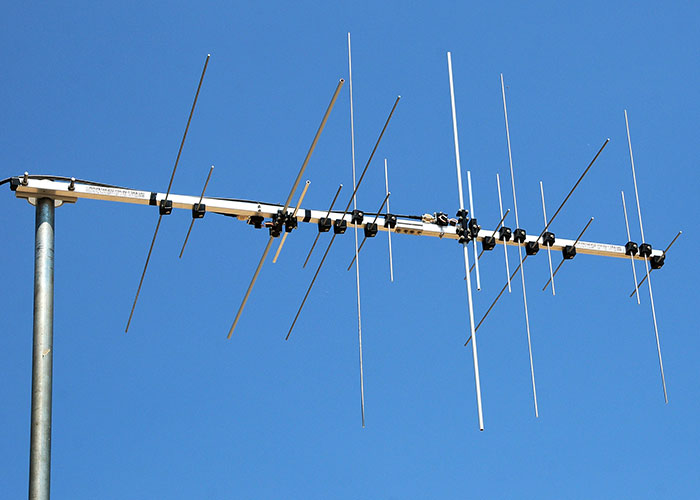

Double DualBand 2m 70cm Antenna 2x2m70cmHV20 Appearance:



What does 2x2m70cmHV20 mean?

• 2x – Two independent DualBand antennas on the same boom
• 2m – Covers 144-146MHz frequency range on both antennas
• 70cm – Covers 430-440MHz frequency range on both antennas
• H – Horizontal polarization antenna
• V – Vertical polarization antenna
• 20 – 20 elements Overall



Double DualBand 2m 70cm Antenna 2x2m70cmHV20 2m Electrical Specifications for Horizontal polarization:

Frequency Range: 144-146MHz
Free Space Forward Gain: 8.4 dBi
Front-to-Back Ratio: 20dB
-3 dB Horizontal Beamwidth: 61.8°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 750W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)

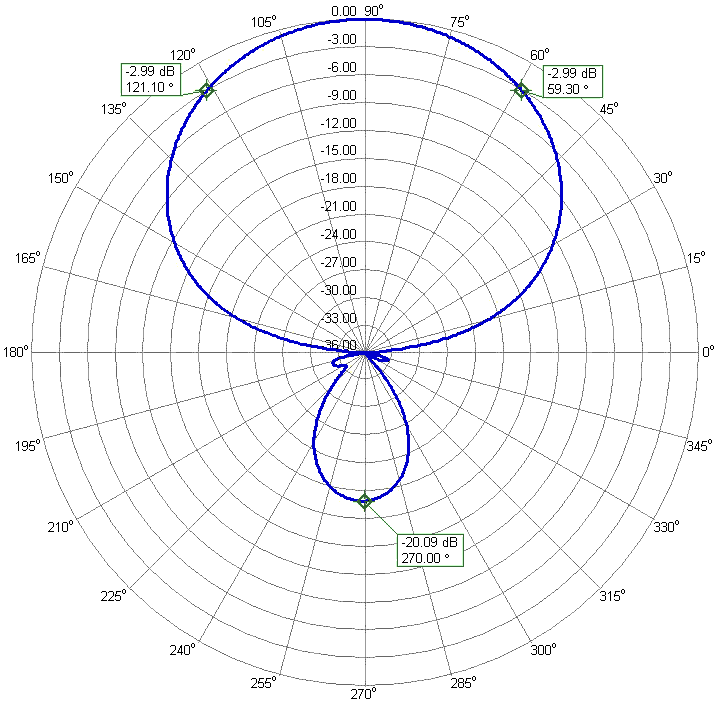

Double DualBand 2m 70cm Antenna 2x2m70cmHV20 2m Azimuth Radiation Pattern Horizontal Polarization



Double DualBand Antenna 2x2m70cmHV20 70cm Electrical Specifications for Horizontal polarization:

Frequency Range: 430-440MHz
Free Space Forward Gain: 11.6dBi
Front-to-Back Ratio: 25 dB
-3 dB Horizontal Beamwidth: 25.9°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 700W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)

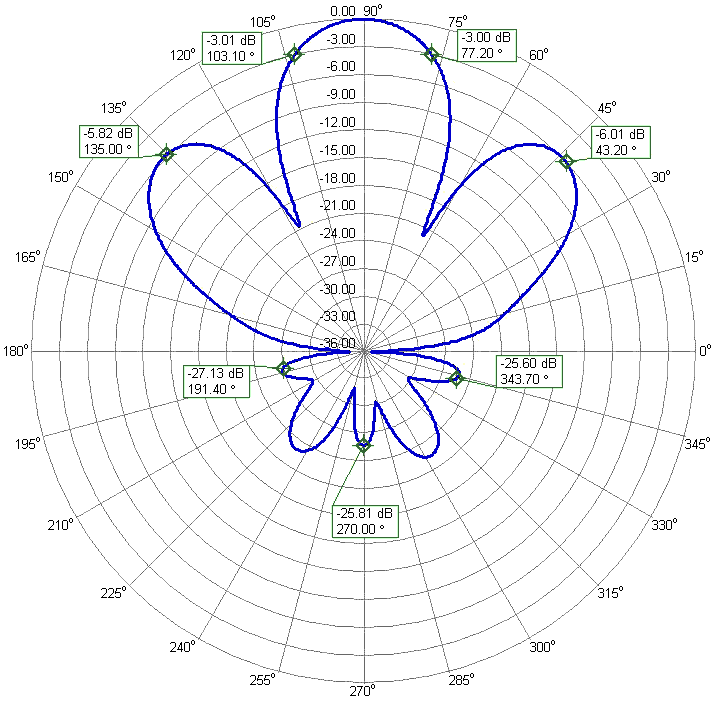

Double Antenna 2x2m70cmHV20 70cm Azimuth Radiation Pattern for Horizontal Polarization



Double DualBand 2m 70cm Antenna 2x2m70cmHV20 2m Electrical Specifications for Vertical polarization:

Frequency Range: 144-146MHz
Free Space Forward Gain: 7.3 dBi
Front-to-Back Ratio: 21dB
-3 dB Horizontal Beamwidth: 115.1°
Polarization: Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 750W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)



Double DualBand 2m 70cm Antenna 2x2m70cmHV20 2m Azimuth Radiation Pattern for Vertical Polarization



Double DualBand Antenna 2x2m70cmHV20 70cm Electrical Specifications for Vertical polarization:

Frequency Range: 430-440MHz
Free Space Forward Gain: 10.3dBi
Front-to-Back Ratio: 19 dB
-3 dB Horizontal Beamwidth: 80.4°
Polarization: Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 700W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (Common connector for both bands)

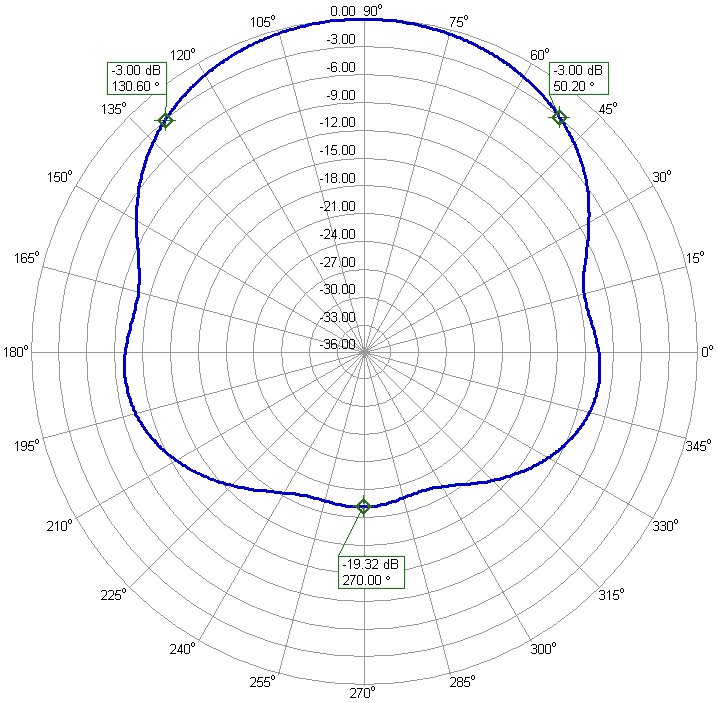

Double Antenna 2x2m70cmHV20 70cm Azimuth Radiation Pattern for Vertical Polarization



Double DualBand 2m 70cm Antenna 2x2m70cmHV20 mechanical specifications:

2m Horizontal polarization, number of elements: 4
70cm Horizontal polarization, number of elements: 7+1
2m Vertical polarization, number of elements: 4
70cm Vertical polarization, number of elements: 5+1
2m and 70cm elements, diameter: 4 mm rod
Both dipoles diameter of 8 mm, Hard Copper tubing with a plastic coating
Longest Element: 1030 mm
Element Mounting Position: Below the Boom and on the side
Balun and Connectors: Included
Boom Length: 1.46 m
Boom Size: 20 x 20 mm
Number of Boom Pieces: 2
Turning Radius: 1.5m
Guy rope support: No, strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed: 150 km/h
Net Weight:  kg
Gross Weight: kg
Transportation Length: 1.2m

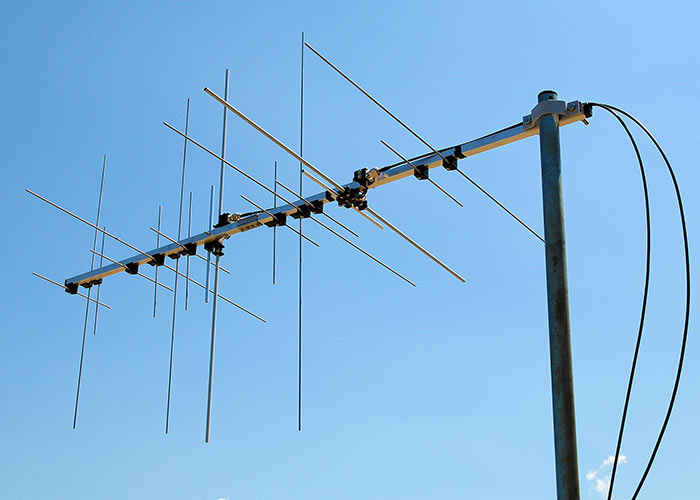

Double DualBand Antenna 2x2m70cmHV20 Horizontal Vertical Polarization with connected cables:
