Dual Band Vertical Polarization Wideband Antenna 2m70cm14WideRVP Rear Mount

Full Band Coverage Dual Band Vertical Polarization Wideband Antenna 2m70cm14WideRVP for Region 2 and Region 3. Designed for 2m 144-148 MHz and 70cm 430-450MHz covers (Private Mobile Radio) PMR446 band. Vertical polarization rear mount. The perfect antenna for FM repeater work on both bands. The antenna could be mounted on any metal mast.

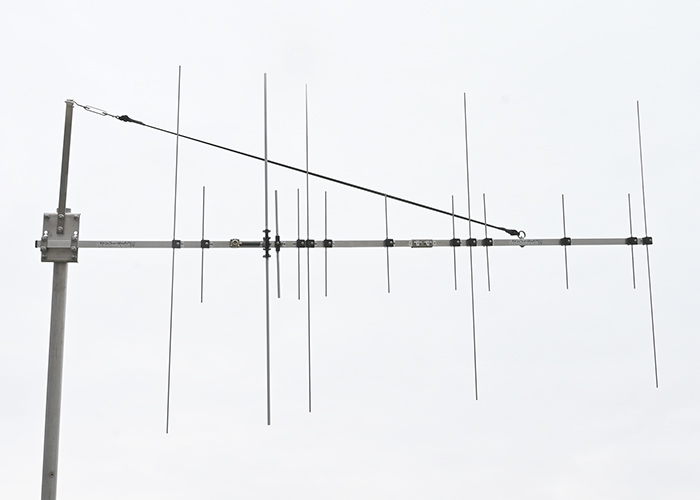

Dual Band 2m 70cm Vertical Polarization Wideband Antenna 2m70cm14WideRVP Appearance:



What does 2m70cm14WideRVP mean?

• 2m – 2m Band. Covers 144-148MHz frequency range
• 70cm – 70cm band. Covers 430-450MHz frequency range
• 14 – 14 elements
• Wide – Extra WideBand antenna for ITU Region 2 and Region 3
• R – Rear mount
• V – Vertical polarization
• P – Power version up to 750/700W



2m Electrical Specifications of Dual Band Vertical Polarization Wideband Antenna 2m70cm14WideRVP

Frequency Range: 144-148 MHz
Free Space Forward Gain: 10.3dBi
Front-to-Back Ratio: 28 dB
Polarization: Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 750W
Matching Method: Current balun
Connector: “N” (Common connector for both bands)



70cm Electrical Specifications of Dual Band Vertical Polarization Wideband Antenna 2m70cm14WideRVP

Frequency Range: 430 – 450MHz
Free Space Forward Gain: 12.9dBi
Front-to-Back Ratio: 24 dB
Polarization: Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 700W
Matching Method: Current balun
Connector: “N” (Common connector for both bands)



2m and 70cm mechanical specifications of Wideband Antenna 2m70cm14WideRVP

Number of Elements: 14
2m Elements Diameter: 4mm rod
70cm Elements Diameter: 4mm rod
Dipole Diameter: 8mm Hard Copper tubing with a plastic coating (Common dipole for both bands)
Longest Element: 1030 mm
Element Mounting Position: On side
Balun and Connector: Included
Boom Length: 1.96 m
Boom Size: 20 x 20 mm
Number of Boom Pieces: 2
Turning Radius: 2m
Guy Rope Support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2 x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 2.5 kg
Gross Weight: 3.6 kg
Transportation Length: 1.18m

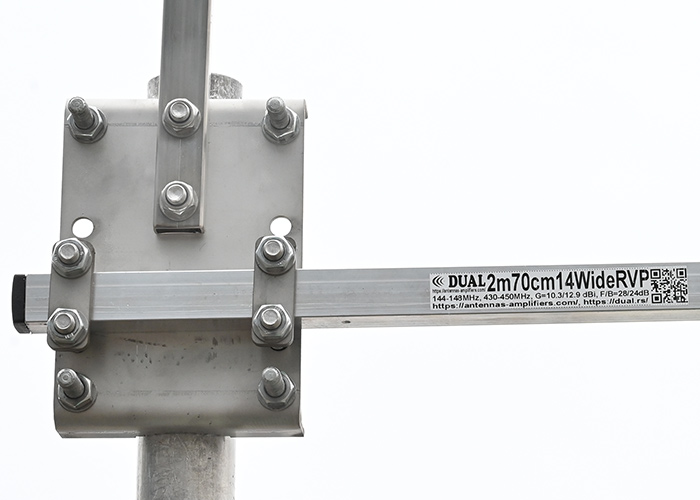

Dual Band Vertical Polarization Wideband Antenna 2m70cm14WideRVP Bracket and Label



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.
  All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, significantly outperforming those designed with the EZNEC program.
• No tuning antennas.
  Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up.
  Everything is labeled, just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties.
  We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



All 2m / 70 cm antennas: 2m/70cm antennas
