DualBand 2m 70cm WideBand EME Power Antenna 2m70cm19DX-2C Two Connectors

Up to 1500W on 2m and 850W on 70cm possible on DualBand 2m 70cm WideBand EME Power Antenna 2m70cm19DX-2C with two separate connectors. Even EME is possible with a single antenna on both bands. More about DX record read is here. The antennas behave as two mono-band antennas. Features with extra high gain for its boom length on both bands, with low SWR. Consists of 7 elements on 2m and 12 elements on 70cm.

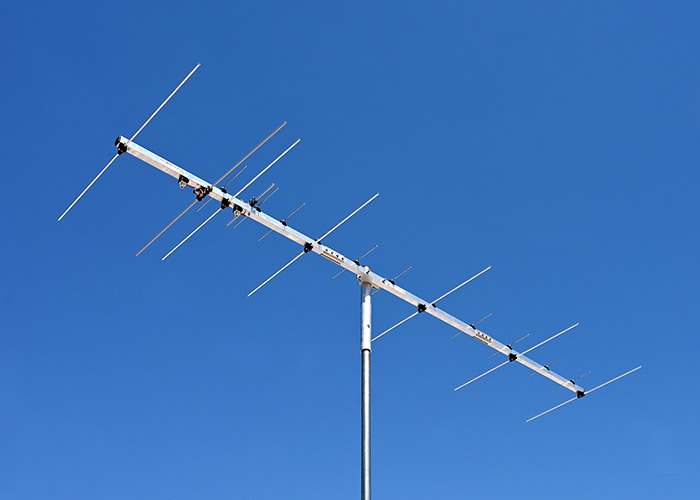

DualBand 2m 70cm WideBand EME Power Antenna 2m70cm19DX-2C Appearance:



The antenna could be produced in three versions:

• SKU: 1250: 2m70cm19DX-2C 144-146 and 432-434MHz, DX version (This antenna)
  SKU: 1252: 2m70cm19W-2C 144-146 and 432-440MHz  EU Wideband version
  SKU: 1254: 2m70cm19Wide-2C 144-148 and 430-450MHz, USA Wideband version. Region 2




What does 2m70cm19DX-2C mean?

• 2m – 2m band with low SWR and excellent gain
• 70cm – 70cm band with low SWR and excellent gain
• 19 – 19 elements. 7 Elements on 2m and 12 elements on 70cm
• DX – Covers 144-146 and 432-434MHz (Also “W” and Wide versions available)
• 2C  – 2Connectors for each band



EME with just 100W will be enough to start working with a lot of amateurs around the world on both bands.



2m Electrical Specifications of DualBand 2m 70cm WideBand EME Power Antenna 2m70cm19DX-2C

Frequency Range: 144 – 146 MHz
Free Space Forward Gain: 12.6 dBi
Front-to-Back Ratio: 28 dB
3 dB Horizontal Beamwidth: 43.2 °
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1500W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”

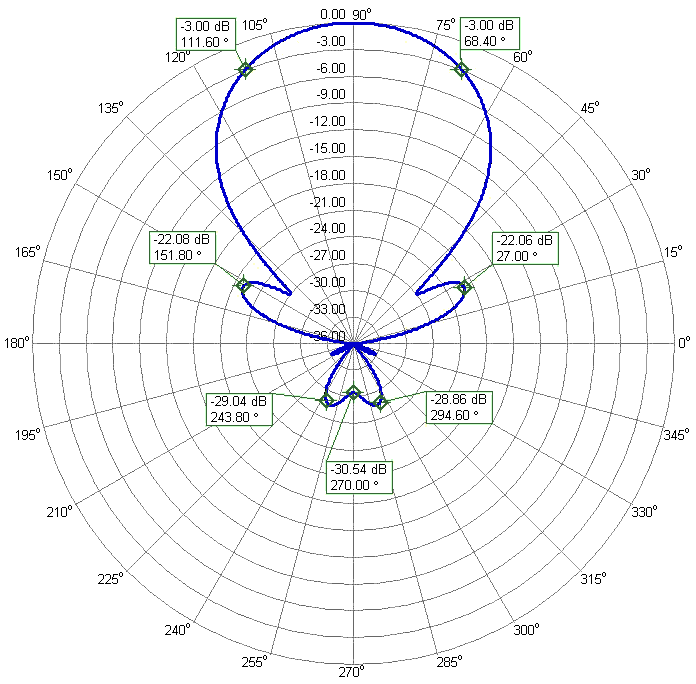

DualBand 2m 70cm WideBand EME Power Antenna 2m70cm19DX-2C 2m Azimuth Radiation Pattern



70cm Electrical Specifications of DualBand 2m 70cm WideBand EME Power Antenna 2m70cm19DX-2C

Frequency Range: 432 – 440 MHz
Free Space Forward Gain: 14.6 dBi
Front-to-Back Ratio: 29 dB
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 850 W
Matching Method: Direct feedthrough RG142 Teflon common mode choke (current balun)
Connector: “N”

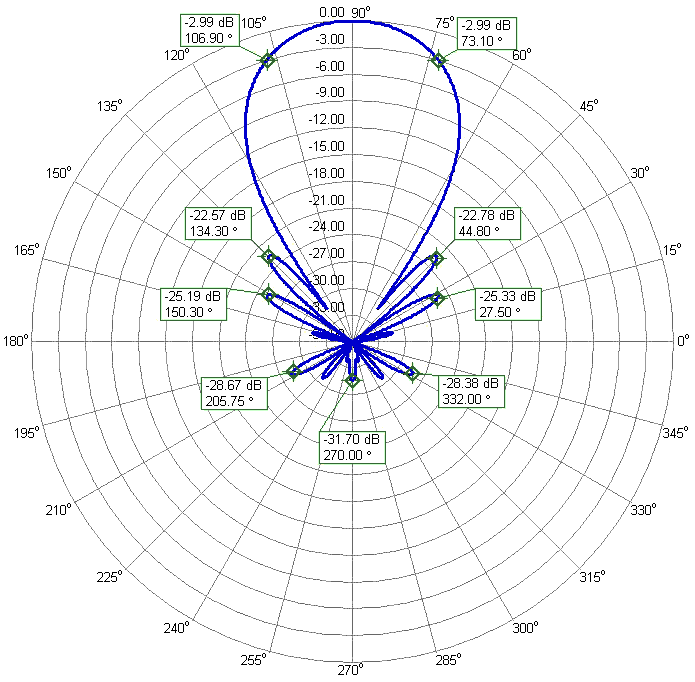

2m70cm19DX-2C Antenna 70cm Azimuth Radiation Pattern



DualBand 2m 70cm WideBand Antenna 2m70cm19DX-2C 2m Measured SWR on 2m



DualBand 2m 70cm WideBand Antenna 2m70cm19DX-2C 2m Measured SWR on 70cm



Mechanical Specifications of DualBand 2m 70cm WideBand EME Power Antenna 2m70cm19DX-2C

2m Number of Elements: 7
70cm Number of Elements: 12
2m Elements Diameter: 8 mm Aluminum tube
70cm Elements Diameter: 4 mm rod
Dipoles Diameter: 8 mm Hard Copper tube, plastic coated
2m Element Mounting Position: Below the Boom
70cm Element Mounting Position: Above the Boom
Balun and Connectors: Included
Boom Length: 2.92m
Boom Size: 30x30mm
Number of Boom Pieces: 2 or 3 for “A” version
Guy rope support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: Goiath, M8 screws Stainless Steel
Survival Wind Speed: 150km/h
Net Weight: 3.6kg
Gross Weight: 5.2kg and 4.9kg for “A” version
Transportation Length: 1.5m or 1.2m for “A” version

The old name of the antenna was PA144-432-19-3-2CBP



More about stacking is here

PA144-432-19-3-2C video:



Hayden VK7HH review of our antenna in his video: Take a look:
