DualBand 6m 2m Antenna 6m2m12DX-2C

DualBand 6m 2m Antenna 6m2m12DX-2C

(1 customer review)

249,00

Lightweight DualBand 6m 2m Antenna 6m2m12DX-2C for portable or stationary use. Two separate connectors. 4 elements on 6m and 8 on 2m.



SKU: 0200 Category:

DualBand 6m 2m Antenna 6m2m12DX-2C 12 Elements

Lightweight DualBand 6m 2m Antenna 6m2m12DX-2C for portable or stationary use. Two separate connectors. One for 6m and the second for a 2m band. Good for chasing DXes. Even EME is possible on both bands: 50MHz and 144 MHz. Excellent antenna for limited space. 3m boom antenna. 4 elements on 6m and 8 on 2m.

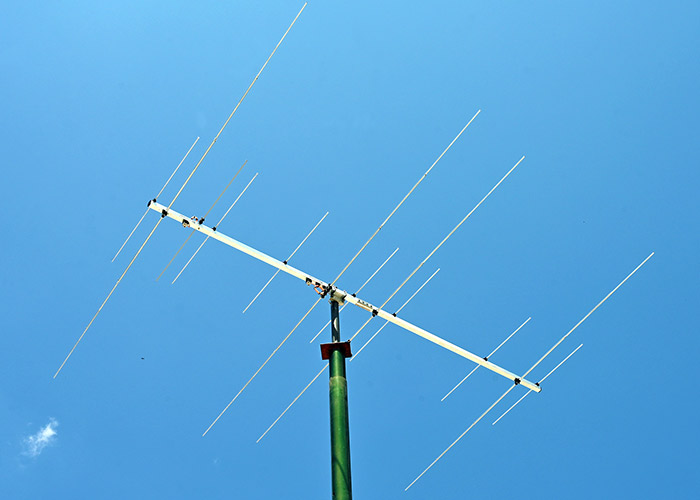

DualBand 6m 2m Antenna 6m2m12DX-2C Appearance:

DualBand 6m 2m Antenna 6m2m12DX-2C



What does 6m2m12DX-2C mean?

  • 6m – 6m band
  • 2m – 2m band
  • 12 – 12 Elements. 4 elements for 6m and 8 elements for 2m band
  • DX – Intended for use on DX parts of the bands. 50-50.5MHz and 144-145MHz
  • 2C – 2Connectors. One connector for a 6m band and a second for a 2m band



6m Electrical specifications of DualBand 6m 2m Antenna 6m2m12DX-2C

Frequency Range: 50-50.5MHz
Free Space Forward Gain: 8.5 dBi
Front-to-Back Ratio: 21dB
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 1000W (by request “P” 1500W version)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”



2m Electrical specifications of DualBand 6m 2m Antenna 6m2m12DX-2C

Frequency Range: 144-145MHz
Free Space Forward Gain: 12.1dBi
Front-to-Back Ratio: 27dB
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 500W (by request “P” 1500W version)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”

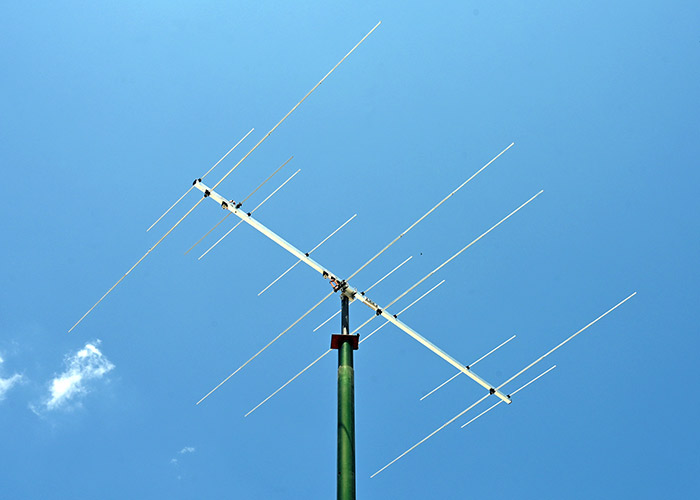

DualBand 6m 2m Yagi Antenna 6m2m12DX-2C

DualBand 6m 2m Yagi Antenna 6m2m12DX-2C



6m Mechanical Specifications of DualBand 6m 2m Antenna 6m2m12DX-2C

Number of Elements: 4
Element Diameter: Tapered elements. Center tube 12mm, extensions 10 and 8mm
Dipole Diameter: Tapered dipole. Center tube 12mm, extensions 10 and 8mm
Longest Element: 3.1 m
Element Mounting Position: Below the boom
Balun and Connector: Included



2m Mechanical Specifications of DualBand 6m 2m Antenna 6m2m12DX-2C

Number of Elements: 8
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 1030 mm
Element Mounting Position: Above the Boom
Balun and Connector: Included



Common mechanical characteristics of 6m2m12DX-2C

Boom Length: 2.92 m
Boom size: 30×30 mm
Turning Radius: 2.2m
Number of Boom Pieces: 2
Guy rope support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 4.7 kg
Gross Weight:  6 kg
Transportation Length: 1.5 m



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

  • F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
  • No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
  • Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
  • Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



Check all DualBand 6m 2m Antennas



Weight 5,7 kg
Dimensions 149 × 19 × 10 cm

1 review for DualBand 6m 2m Antenna 6m2m12DX-2C

  1. Bruno

    Antenna easily assembled and now at the top of the tower.
    First QSOs on 6 meter was on Tuesday with poor propagation but antenna works fine.
    Good job !
    Bruno – F5AGB
