DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C

DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C

429,00

Ultimate DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C with 15 elements. Best of the best for DXing and contesting. Two antennas on a single boom.

SKU: 0355 Category:

DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C 15 elements

Ultimate DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C with 15 elements. Best of the best for DXing and contesting. Two separate connectors for each band. 7 elements for 6m and 8 elements for the 4m band will produce superb booming signals with 59+ reports on both bands. Two antennas on a single boom behave as two mono-band antennas.

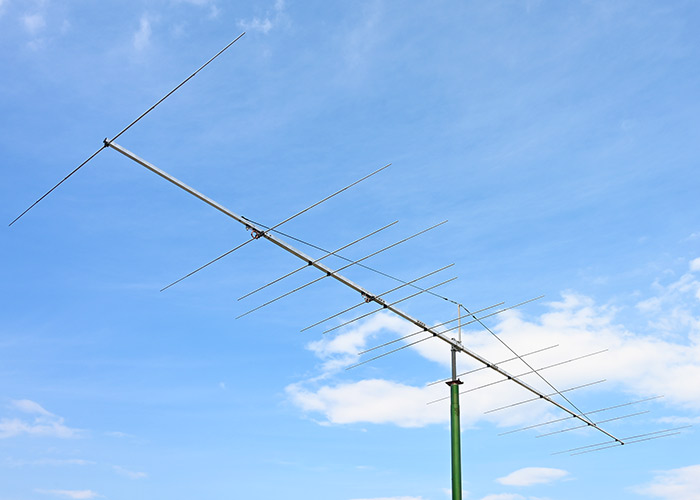

DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C Appearance:

DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C



What does 6m4m15DX-2C mean?

  • 6m – 6m band
  • 4m – 4m band
  • 15 – 15 elements. 7 elements for 6m and 8 elements for 4m band
  • DX – For use in the DX part of the bands 50-50.5MHz and 70-70.5 MHz with perfect SWR
  • 2C – 2Connectors. One connector for a 6m band second connector for a 4m band



6m Electrical specifications of DualBand 6m 4m Antenna 6m4m15DX-2C

Frequency Range: 50-50.5 MHz
Free Space Forward Gain: 12.3 dBi
Front-to-Back Ratio: 23 dB
-3 dB Horizontal Beamwidth: 41.8°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1500W (more by request)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (7/16DIN by request)

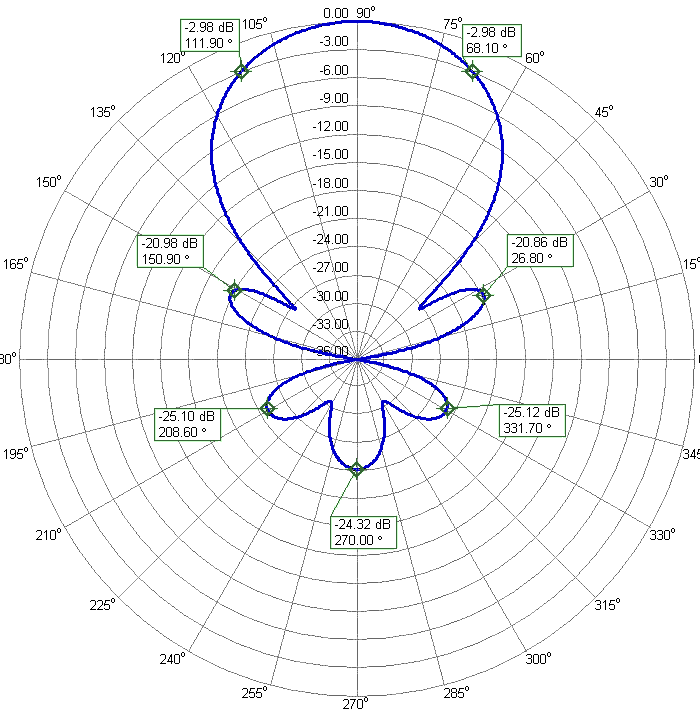

DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C 6m Azimuth Radiation Pattern

DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C 6m Azimuth Radiation Pattern



4m Electrical specifications of DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C

Frequency Range: 70-70.5 MHz
Free Space Forward Gain: 13.5 dBi
Front-to-Back Ratio: 24 dB
-3 dB Horizontal Beamwidth: 39.2°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1500W (more by request)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (7/16DIN by request)



DualBand 6m 4m Antenna Two Connectors 6m4m15DX-2C 4m Azimuth Radiation Pattern

DualBand 6m 4m Antenna Two Connectors 6m4m13DX-2C 4m Azimuth Radiation Pattern



Power input options by order of DualBand 6m4m15DX-2C

“E”Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 2500W for both bands 6m4m15DXE-2C
“EX”EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 7500W for both bands 6m4m15DXEX-2C

All power combinations are possible. Say 2500W on a 6m band (“E” option) and 1500W on a 4m band by request.



6m Mechanical Specifications of DualBand 6m 4m Antenna 6m4m15DX-2C

Number of Elements: 7
Tapered elements. Center tube 12mm, extensions 10 and 8mm
Tapered dipole. Center tube 12mm, extensions 10 and 8mm
Balun and Connector: Included
Longest Element: 3.1 meter
Element Mounting Position: Below the boom



4m Mechanical Specifications of DualBand 6m 4m Antenna 6m4m15DX-2C

Number of Elements: 8
Tapered elements. Center tube 12mm, extensions 10
Tapered dipole. Center tube 12mm, extensions 10
Balun and Connector: Included
Longest Element: 2.2 meter
Element Mounting Position: Below the boom



Common mechanical specifications of 6m4m15DX-2C

The overall number of elements: 15
Boom Length: 9 m
Tapered boom: 40 x 40 mm, 30 x 30 mm, 20 x 20 mm
Turning Radius: 5.5 m
The Number of Boom Pieces: 7
Guy rope support: Yes – Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2x M10 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 15 kg
Gross Weight: 16.5 kg
Transportation Length: 1.5 m

The old name of the antenna was PA5070-15-9-2CBGP



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

  • F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
  • No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
  • Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
  • Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



Click here for all DualBand 6m and 4m antennas: 6m 4m DualBand Antenna



Weight 16,2 kg
Dimensions 149 × 19 × 18 cm
