DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C

DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C

235,00

DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C. Two antennas on a single boom behave as two mono-band antennas.

SKU: 0310 Category:

DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C 9 elements

Strong and sturdy construction DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C 9 elements. One separate connector for the 6m band and the other for the 4m band. Spare your free space on the tower for other antennas. Two antennas on a single boom behave as two mono-band antennas. Excellent antenna for DXing and contesting. Elements are placed on both sides of the boom to maximize gain, F/B, and SWR characteristics. Connectors are placed under the boom for easy cable routing.

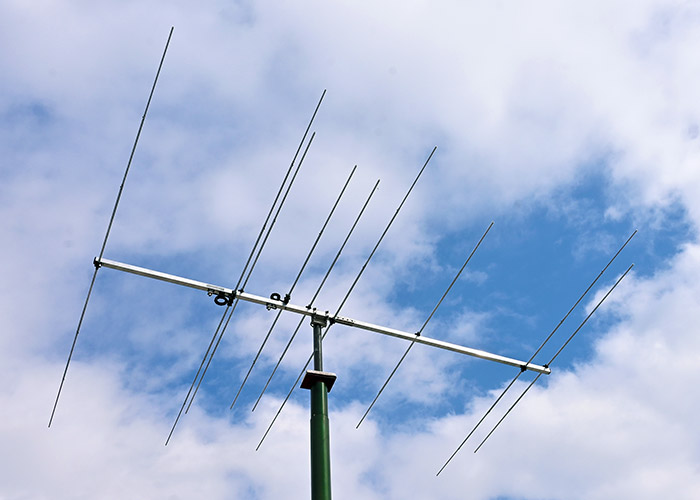

DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C 9 elements appearance:

DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C



What does 6m4m9DX-2C mean?

  • 6m – 6m band
  • 4m – 4m band
  • 9 – 9 elements. 4 elements for 6m and 5 elements for 4m band
  • DX – For use in the DX part of the bands 50-50.5MHz and 70-70.5 MHz with perfect SWR
  • 2C – 2Connectors. One connector for a 6m band second connector for a 4m band.



6m Electrical specifications of DualBand 6m 4m Antenna 6m4m9DX-2C

Frequency Range: 50-50.5 MHz
Free Space Forward Gain: 8.8 dBi
Front-to-Back Ratio:
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1000W (more by request)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (7/16DIN by request)



4m Electrical specifications of DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C

Frequency Range: 70-70.5 MHz
Free Space Forward Gain: 8.8 dBi
Front-to-Back Ratio:
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 850W (more by request)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (7/16DIN by request)



Power input options by order of DualBand 6m4m9DX-2C

“P”Power version “N” Input connector RG142 5mm Teflon balun cable: 1500W for both bands 6m4m9DXP-2C
“E”Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 2500W for both bands 6m4m9DXE-2C
“EX”EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 7500W for both bands 6m4m9DXEX-2C

All power combinations are possible. Say 2500W on a 6m band (“E” option) and 1500W on a 4m band (“P” option) by request.



SWR Measurements on DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C

6 meter SWR is better than 1.1

6meter SWR measurement on DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C



4 meter SWR is better than 1.1

4meter SWR Measurement on DualBand 6m 4m Antenna Two Connectors 6m4m9DX-2C



6m Mechanical Specifications of DualBand 6m 4m Antenna 6m4m9DX-2C

Number of Elements: 4
Tapered elements. Center tube 12mm, extensions 10 and 8mm
Tapered dipole. Center tube 12mm, extensions 10 and 8mm
Balun and Connector: Included
Longest Element: 3.1 meter
Element Mounting Position: Below the boom



4m Mechanical Specifications of DualBand 6m 4m Antenna 6m4m9DX-2C

Number of Elements: 5
Tapered elements. Center tube 12mm, extensions 10
Tapered dipole. Center tube 12mm, extensions 10
Balun and Connector: Included
Longest Element: 2.2 meter
Element Mounting Position: Above  the boom



Common mechanical specifications of 6m4m9DX-2C

The overall number of elements: 9
Boom Length: 2.92 m
Boom: 30 x 30 mm
Turning Radius: 2 m
The Number of Boom Pieces: 2
Guy rope support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 4.9 kg
Gross Weight: 6.2 kg
Transportation Length: 1.5 m

The old name of the antenna was PA5070-9-3-2CB



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

  • F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
  • No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
  • Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
  • Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



Click here for all DualBand 6m and 4m antennas: 6m 4m DualBand Antenna



Weight 6,2 kg
Dimensions 149 × 19 × 12 cm
