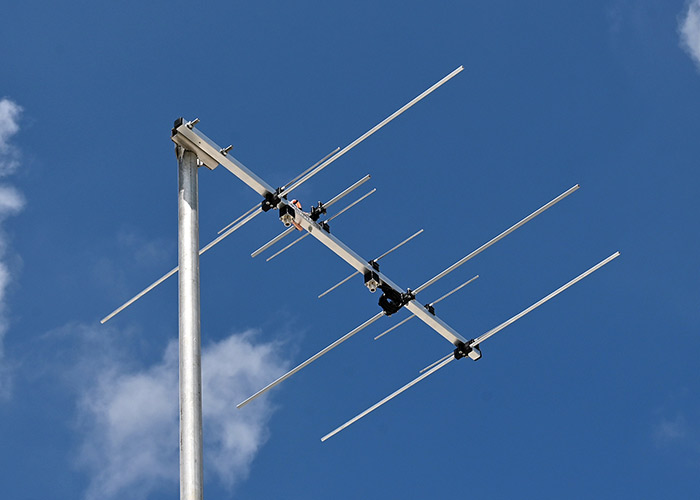

DualBand Antenna 2m-70cm Two Connectors 2m70cm9WR-2C

DualBand Antenna 2m-70cm Two Connectors 2m70cm9WR-2C

115,00

DualBand Antenna 2m 70cm Two Connectors 2m70cm9WR-2C Wideband operation

SKU: 1120 Category:

Wideband DualBand Antenna 2m 70cm Two Connectors 2m70cm9WR-2C

Light and portable wideband DualBand Antenna 2m-70cm Two Connectors 2m70cm9WR-2C. Excellent for DXing or turned-in vertical polarization for FM simplex or repeaters. Good gain for both bands.



DualBand Antenna 2m-70cm Two Connectors 2m70cm9WR-2C Wideband

DualBand Antenna 2m-70cm Two Connectors 2m70cm9WR-2C



What does 2m70cm9WR-2C mean?

  • 2m – Covers 144-146MHz frequency range
  • 70cm – Covers 430-440MHz frequency range
  • 9 9 elements. 3 elements on a 2-meter and 6 on a 70-cm with excellent gain. Comparable with two monoband antennas
  • W – Wideband version on both bands
  • RRear mount
  • 2C2Connectors. Each band has its connector.



2m70cm9WR-2C could be produced in two versions:

  • SKU:1120 2m70cm9WR-2C (this antenna)
  • SKU:1122 2m70cm9WRV-2C with vertical polarization



2m Electrical Specifications of DualBand Antenna 2m-70cm Two Connectors 2m70cm9WR-2C

Frequency Range: 144-146 MHz (144-148MHz)
Free Space Forward Gain: 7.1dBi
Front-to-Back Ratio: 22dB
Polarization: Horizontal or vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 500W (1500W by order)
Matching Method: Direct feed through common mode balun
Connector: “N”



70cm Electrical Specifications of DualBand Antenna 2m-70cm Two Connectors 2m70cm9WR-2C

Frequency Range: 430-440 MHz (430-450MHz)
Free Space Forward Gain: 11.15dBi
Front-to-Back Ratio: 23dB
Polarization: Horizontal or vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 850W
Matching Method: Direct feed through common mode balun
Connector: “N”



Mechanical specifications of DualBand Antenna 2m-70cm Two Connectors 2m70cm9WR-2C

2m Number of Elements: 3, 8 mm Aluminum tube
70cm Number of Elements: 6, 4 mm Aluminum rod
Dipoles Diameter: 8 mm Hard Copper tube plastic coated
Element Mounting Position: 2m below the boom. 70cm above the boom.
Balun and Connectors: Included
Boom Length: 1m
Boom Size: 20x20mm
Number of Boom Pieces: 1
Guy rope support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: Goiath, M8 screws Stainless Steel
Survival Wind Speed: 160km/h
Net Weight: 1.4kg
Gross Weight: 2.5kg
Transportation Length: 1m



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

  • F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
  • No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
  • Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
  • Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.

The old name of the antenna was PA144-432-9-1-2CRA



All 2 meter / 70 cm antennas: 2m/70cm antennas
2m / 70cm Common Connector antenna
2m / 70cm Two Connector Dual Band



Weight 2,5 kg
Dimensions 109 × 13 × 12 cm
