FM 88-108MHz Transmitting Antenna 3elements FM3TXRV 300W

Robust construction FM 88-108MHz Transmitting Antenna 3elements FM3TXRV, rear-mount.

Key Features

• Extreme Gain: Provides a free-space forward gain of 7.3 dBi.
• Very wide azimuth radiation pattern of almost 120°.
• High Front-to-Back: 22 dB
• Maximum FM power of 300W for standard “N” connector and 1000W with Extreme power balun and 7-16 DIN connector.
• SWR less than 1.2 on any frequency in the +-1MHz range.
• With “RA” bracket for easy polarization change.
• Lightweight construction



What does FM3TXRV mean?

• FM – Intended for the FM frequency range 87.5 MHz to 108 MHz
• 3 – 3 elements
• TX – Transmitting antenna
• R – Rear mount
• V – Vertical polarization

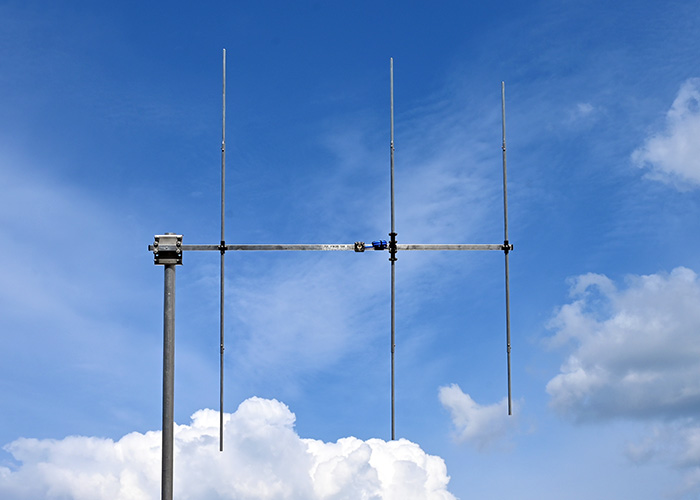

FM 88-108MHz Transmitting Antenna 3elements FM3TXRV Appearance:



Electrical Specifications FM 88-108MHz Transmitting Antenna 3elements FM3TXRV

Frequency range by order: Any frequency +-1MHz within the range of 87.5 – 108MHz
Free Space Forward Gain: 7.3 dBi
Front-to-Back Ratio: 22 dB
-3 dB Horizontal Beamwidth: 117.55°
-3 dB Vertical Beamwidth: 66.5°
Polarization: Vertical or Horizontal, by order
Nominal Input Impedance: 50 Ohms
SWR across entire given frequency range: < 1.2
Maximum Power Input: 300W (By order “E” version 1000W)
Matching Method: Direct feed-through common-mode choke (current balun)
Connector: “N” (or 7/16 DIN by order)

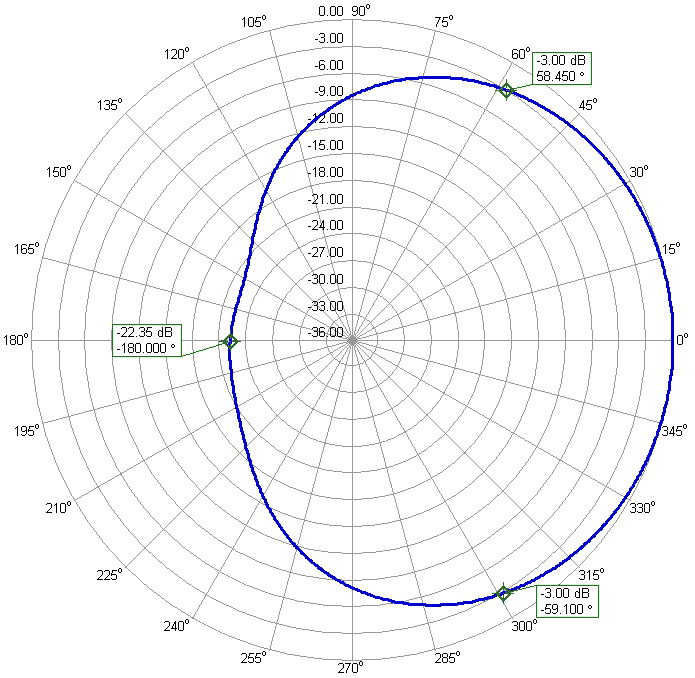

FM 88-108MHz Transmitting Antenna 3elements FM3TXRV Azimuth Radiation Pattern



Mechanical specifications of FM Transmitting Antenna 3elements FM3TXRV

Number of Elements: 3
Tapered elements. Centre tube 12mm, extension 10mm
Tapered dipole. Centre tube 12mm, extension 10mm
Balun and Connector: Included
Longest Element: 1.7m
Element Mounting Position: On the side
Boom Length: 1.3 m
Boom: 20 x 20 mm
Number of Boom Pieces: 1
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: 2x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 1.9 kg
Gross Weight: 2.7 kg
Transportation Length: 1.49 m

By ordering any frequency between 87.5 to 108MHz +-1MHz



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.
  All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, significantly outperforming those designed with the EZNEC program.
• No tuning antennas.
  Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up.
  Everything is labeled, just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties.
  We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.
