FM-DX Kit 2m11WPV Set of 2×11 elements stack antennas. All included

Use this FM DX Kit 2m11WPV to reach distant repeaters or distant FM stations that cannot even be heard with ordinary antennas.

The complete system FM DX Kit 2m11WPV consists of:

1. Two vertically polarized FM-DX high-gain antennas 144-146 MHz wideband on a 6m boom.
2. Two “horizontal” brackets to put on 60x60mm strong cross boom.
3. Two 60 x 60mm cross booms with exact length for stacking two antennas.
4. Big central bracket to join two cross boom parts with strong M12 clamps and to put on the mast.
5. Phasing harnes. Two measured LMR400 cables to have the same electrical length and with enough length to rich divider.
6. 2-Way divider with “N” input connector for power up to 1500W, or with 7/16 DIN input connector for up to 3000W by order.

Your task is simply to assemble and place it on your tower.



FM-DX Kit 2m11WPV Set of 2×11 elements stack antennas appearance:



What does 2m11WPV Kit mean

• 2m – 2m band
• 11 – 11+11 elements
• W – Wideband 144-146MHz with low SWR
• P – The default Power for the antenna kit is 1500W (with 2-Ways divider “N” and connectors)
• V – Vertical polarization



Electrical Specifications of FM DX Kit 2m11WPV stack system

Frequency Range: 144 – 146 MHz
Free Space Forward Gain (for stack): 17.7 dBi
Front-to-Back Ratio: 27 dB
-3 dB Horizontal Beamwidth: 17.2°
Polarization: Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1500W (more by request)
Matching Method: Direct feed through Teflon RG142 common mode choke (current balun)
Connector: “N” (or 7/16 DIN by request)



Power versions of FM DX Kit 2m11WPV System

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 4000W – 2m11WEV
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 5500W – 2m11WEXV



FM-DX Kit 2m11WPV Stack Azimuth Radiation Pattern



Mechanical Specifications of FM-DX Kit 2m11WPV Set of 2×11 elements stack antennas

Number of elements: 22 (11+11)
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Balun and Connector: Included
Longest element: 1040 mm
Element Mounting Position: On the side
Boom Length: 2 x 5.7 m
Tapered Boom: 40x40mm, 30x30mm, 20x20mm
The number of Boom Pieces: 5
Guy rope support: Yes, included
Mounting Mast Diameter: 43 – 60 mm 1-11/16″ – 2″
Clamp: 2xM12 Stainless Steel
Survival Wind Speed: 150 km/h
Transportation Length: 2 meters

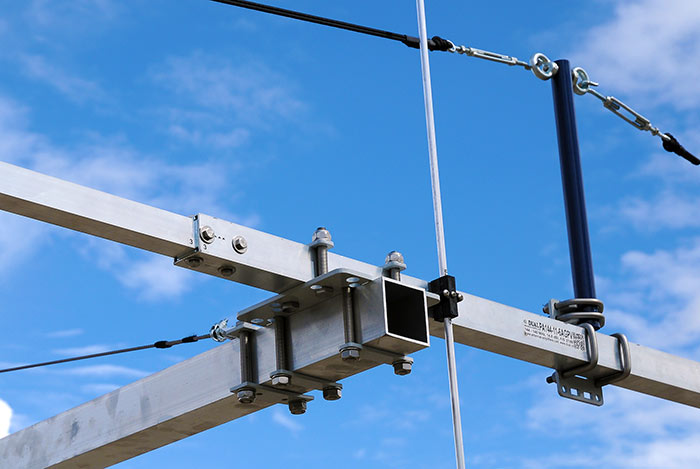

FM-DX Kit 2m11WPV Horizontal Bracket

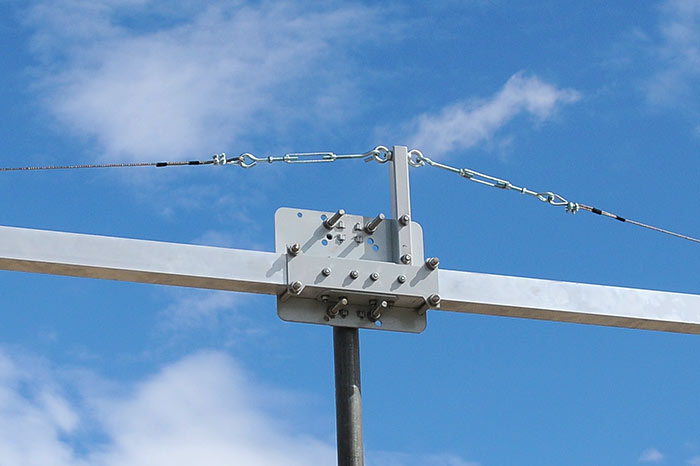

FM-DX Kit 2m11WPV Central Big Bracket
