Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide 144-148MHz and 430-450MHz

Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide 144-148MHz and 430-450MHz

Region 2 and Region 3 Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide designed for 2m 144-148 MHz and 70cm 430-450MHz. Horizontal or vertical polarization. Perfect antenna for tropo dx-ing or FM repeater work. The antenna could be mounted on any metal mast for horizontal polarization. For vertical polarization horizontal arm at least 1m long must be used.

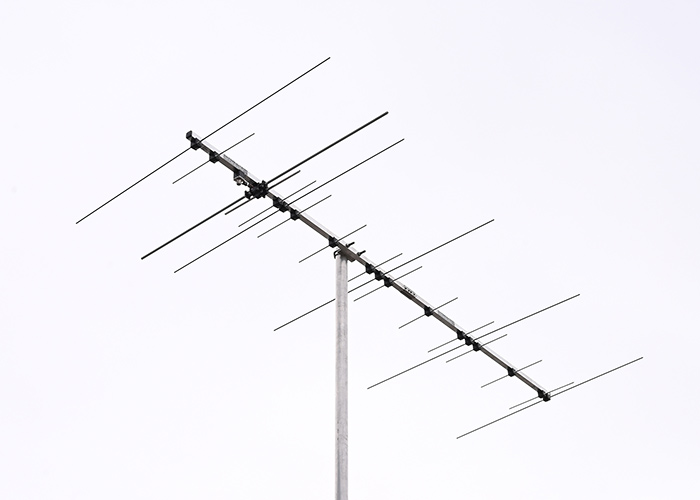

Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide Appearance:

Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide



What does 2m70cm18Wide mean?

  • 2m – 2m Band. Covers 144-148MHz frequency range
  • 70cm – 70cm band. Covers 430-450MHz frequency range
  • 18 – 18 elements
  • Wide – Extra WideBand antenna for ITU Region 2 and Region 3



2m Electrical Specifications of Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide

Frequency Range: 144 – 148 MHz
Free Space Forward Gain: 11.1 dBi
Front-to-Back Ratio: 27 dB
3 dB Horizontal Beam-width: 48.6°
Polarization: Horizontal or Vertical
Nominal Input Impedance: 50 Ohm
SWR Across Entire Band: < 1.2
Maximum Power Input: 100 W
Matching Method: Current Balun
Connector: “N” (Common connector for both bands)



2m70cm18Wide 2m Azimuth Radiation Pattern

Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide 2m Azimuth Radiation Pattern



70cm Electrical Specifications of Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide

Frequency Range: 430 – 450MHz
Free Space Forward Gain: 13.5 dBi
Front-to-Back Ratio: 25 dB
3 dB Horizontal Beam-width: 27.3°
Polarization: Horizontal or Vertical
Nominal Input Impedance: 50 Ohm
SWR Across Entire Band: < 1.2
Maximum Power Input: 50 W
Matching Method: Curren Balun
Connector: “N” (Common connector for both bands)



2m70cm18Wide 70cm Azimuth Radiation Pattern

Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide 70cm Azimuth Radiation Pattern



2m and 70cm mechanical specifications of Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide

Number of Elements: 18
2m Elements Diameter: 4 mm rod
70cm Elements Diameter: 4 mm rod
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest Element: 1030 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 1.96 m
Boom Size: 20 x 20 mm
Number of Boom Pieces: 2
Turning Radius: 1.3 meter
Guy Rope Support: Not necessary. Strong boom
Mounting Mast Diameter: 30 – 50 mm 1-1/4 – 2″ OD
Clamp: M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 1.9 kg
Gross Weight: 3 kg
Transportation Length: 1.18 m



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

  • F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
  • No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
  • Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
  • Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



All 2m-70cm dual-band antennas. Common connector and Two connector



Weight 4,9 kg
Dimensions 149 × 17 × 10 cm

1 review for Full Band Coverage 2m 70cm DualBand Antenna 2m70cm18Wide

  1. Scott

    I absolutely LOVE my 2m70cm18Wide. I have been doing some satellite grid-roving lately, and have used only the rear half of the antenna (easy to fit in the car). Absolutely no problem, both with LEO satrellites, and with IO-117 “GreenCube” 70cm digital sat.

    Also, I made my first 70cm EME contact using that antenna (full size) with 50 watts (New Mexico legal limit). Fantastic.

    Scott K5TA
