GNSS 1164-1610MHz Bias Tee Outdoor

Ultimate super low insertion loss GNSS 1164-1610MHz Bias Tee. Wideband frequency range GNSS Lower L-Band 1164 – 1300 MHz and upper L-Band 1559 – 1610MHz, including SAR frequencies 1544 – 1545 MHz.

What’s a Bias Tee?

A “Bias-Tee”, also known as a “DC Inserter”, is a simple way to feed DC power through coaxial cable to the remote device, such as a pre-amplifier and/or transmit/receive relays via the coaxial cable.

The main task is to inject DC into or extract DC from the coaxial cable, leaving the RF signal undisturbed.

A bias tee is a passive RF circuit consisting of capacitors and inductors. Act as a diplexer by combining DC and RF signals onto a common port RF+DC.

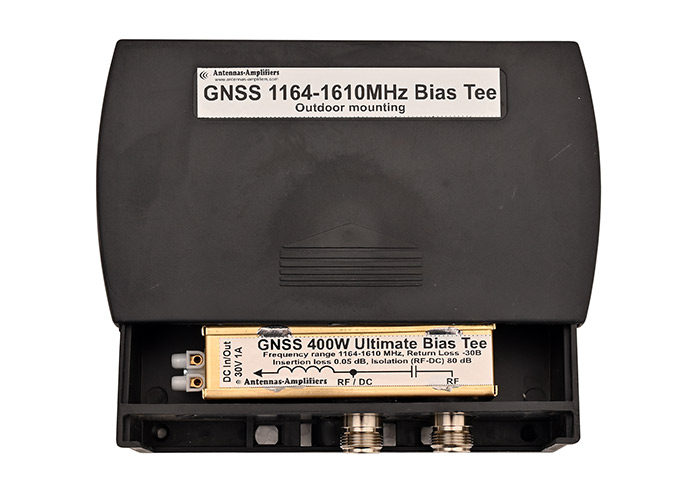

GNSS 1164-1610MHz Bias Tee Appearance:





GNSS 1164-1610MHz Bias Tee characteristics:

Frequency Range: 1164-1610MHz for Return Loss at least -30dB
Frequency Range for SWR less than 1.2: 540-1730MHz (Wideband)
Max Power at SWR 1:1 400W
Insertion Loss: 0.05dB
Input Return Loss: -30dB
Isolation RF-DC port: 80dB
DC resistance from DC port to RF: 0.15Ω
Max Supply Voltage: 30V
Max Supply Current 1A
Connectors: “N”

Permanent damage may occur if any of these limits are exceeded.



GNSS 1164-1610MHz Bias Tee Return Loss and Insertion Loss



GNSS 1164-1610MHz Bias Tee measured SWR



GNSS Bias Tee Wideband Characteristics 540-1730MHz



Bias Tee for all frequencies.
