Strong H-Frame For 70cm17DXP Antenna

Dedicated strong H-Frame for 70cm17DXP antenna. Complete made of Aluminum and Stainless Steel.



Strong H-Frame For 70cm17DXP Antenna Appearance:



Specially designed bracket with a firm grip on square and round tubes

The central pipe has a diameter of 40 mm and a wall thickness of 5 mm.

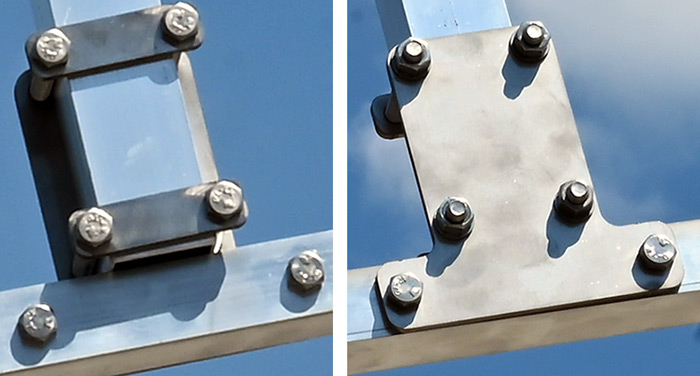

To prevent the antennas from rotating, specially designed square brackets were used.



Strong H-Frame For 70cm17DXP Antenna:

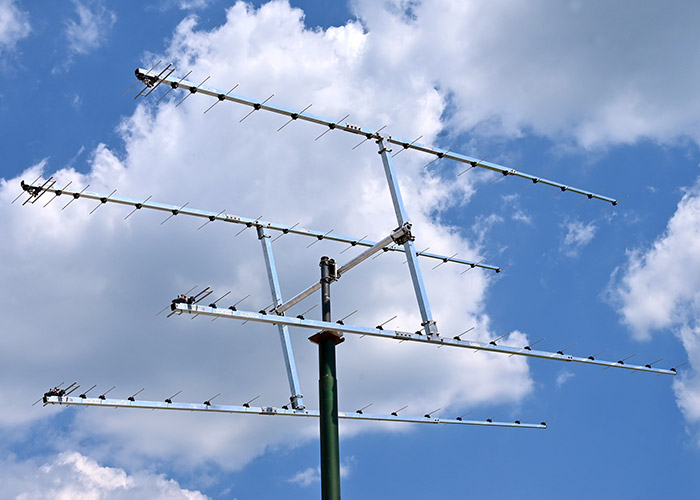

When the “H” frame is ordered with antennas, the antennas are arranged according to the labels that define their positions. The two lower antennas have inverted dipoles, ensuring that all four are in phase. Antennas and connectors placed in this way will provide the shortest possible coaxial cable to the splitter and therefore the strongest possible signal.



The H-Frame For 70cm17DXP is available in three different variants. “Max Suppression”, “Solid F/S + Solid Gain”, and “Max Gain”

• “Max Suppression”. Maximum suppression of all side lobes: 1160/1220mm, G=22.5 dBi, (+5dB), -20.8dB / -18.3dB
• “Solid F/S + Solid Gain”. Solid F/S, Solid gain: 1300/1300mm, G=22.9 dBi, (+5.4dB), -15.7dB / -15dB
• “Max Gain”. Maximum gain regardless of side lobes: 1500/1440mm, G=23.3 dBi, (+5.8dB), -11.4dB / -11.7dB

According to 70cm17DXP stacking distances

By ordering any version at the same price.
