HF 10m 6elements Yagi Antenna 10m6HD 28 – 29MHz

SKU: 3350 Category:

HF 10m 6elements Yagi Antenna 10m6HD 28-29MHz

HF 10m 6elements Yagi Antenna 10m6HD for daily and contest work. If you want to be a 10m boss, this antenna is right for you. A flat SWR curve, a high gain of 11 dBi with excellent front-to-back make this antenna ideal for obtaining satisfaction in any ham radio work. Strong construction with a boom size of 60x60mm and a starting element size of 25mm will ensure resistance to any high winds.



HF 10m 6elements Yagi Antenna 10m6HD appearance:

HF 10m 6elements Yagi Antenna 10m6HD



What does 10m6HD mean?

  • 10m – 10m band. Covers 28 to 29 MHz main band. With a good SWR of less than 1.5 covers also CB band 27.2 to 29.2 MHz
  • 6 – 6 elements
  • HDHeavy Duty construction could withstand any high winds.



Electrical specifications of HF 10m 6elements Yagi Antenna 10m6HD

Frequency Range: 28 – 29 MHz
Frequency Range for SWR less than 1.5: 27.2 – 29.2 MHz (excellent gain for CB band)
Free Space Forward Gain: 11 dBi
Forward Gain 20m AGL: 16.5 dBi
Front-to-Back Ratio: 26 dB
-3 dB Horizontal Beamwidth: 51.15°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohm
SWR Across Entire Band: < 1.2
Maximum Power Input: 2500W (more by order)
Matching Method: Direct feed through common mode choke (current balun)
Connector: Silver plated Teflon SO239 or 7/16 DIN by request



10m6HD Azimuth Radiation Pattern

HF 10m 6elements Yagi Antenna 10m6HD Azimuth Radiation Pattern



Mechanical specifications of HF 10m 6elements Yagi Antenna 10m6HD

Number of Elements: 6
Elements Diameter: Tapered elements starting diameter 25 mm to 8 mm
Longest Element: 5.7 m
Element Mounting Position: Below the boom
Balun and Connector: Included
Boom Length: 9.3 meter
Boom Size: 60 x 60 mm
Turning radius: 5.5m
Number of Boom Pieces: 5
Guy rope support: Yes, Included Stainless Steel AISI 316L rope 4 mm
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: 2 x M12 Stainless Steel AISI 316L (A4)
Survival Wind Speed: 150 km/h
Net Weight: 35 kg
Gross Weight: 39.5 kg (Two boxes up to 20kg)
Transportation Length: 2m



HF 10m 6elements Super Yagi Antenna 10m6HD 28 MHz to 29 MHz.

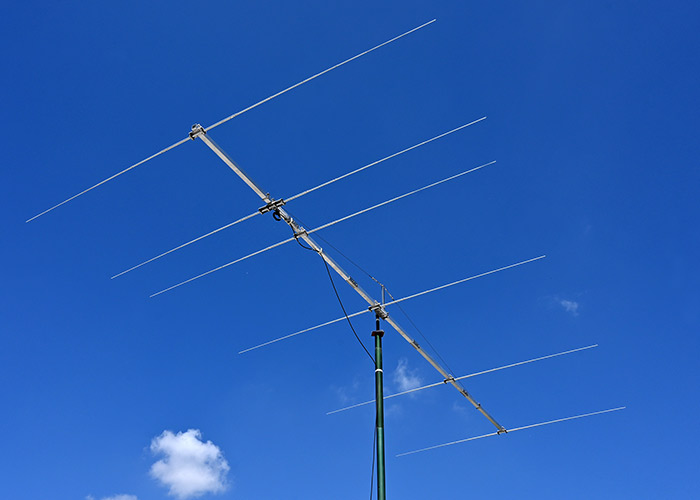

Nice view of the antenna.

HF 10m 6elements Super Yagi Antenna 10m6HD



Strong mechanics and quality components of 10m6HD:

HF 10m 6elements Super Yagi Antenna 10m6HD Bracket and Guy Rope Support View

HF 10m 6elements Super Yagi Antenna 10m6HD Bracket and Guy Rope Support View



HF 10m 6elements Super Yagi Antenna 10m6HD Dipole and Balun View

HF 10m 6elements Super Yagi Antenna 10m6HD Dipole and Balun View



Antennas-Amplifiers Product Benefits. A Major advance in Amateur Radio antenna design.



  • F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D Electromagnetic Simulation Software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using “wire” programs.
Comparison of EM simulation software

  • No tuning antennas

Before dispatch, we assemble each antenna and test antenna characteristics. That means you may expect exceptionally good electrical and mechanical characteristics including low SWR across the designed range immediately after assembling.
No need to tune the dipole, or any other element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

  • Easy to set up

Everything is labeled, just put number to number. The antenna can be assembled with hand tools.
Everything is included in the antenna box: Antenna, balun with connector, and bracket. Yours is to assemble and have fun!

  • Mechanical properties

We believe that our antennas are the world’s strongest and are mechanically constructed much better than any antennas from other manufacturers.
