LTE450-470CROSS30 Antenna for PMR and critical IoT

LTE450-470CROSS30 Antenna for Private Mobile Radio (PMR) and mission-critical IoT applications.

LTE450-470CROSS30 Antenna covers:

Band 31 (450 MHz)
Uplink: 452.5 – 457.5 MHz
Downlink: 462.5 – 467.5 MHz
For Private Mobile Radio and IoT

Band 72 (450 MHz)
Uplink: 451 – 456 MHz
Downlink: 461 – 466 MHz
For LTE Cat 4 substation routers and critical IoT

LTE450-470CROSS30 Antenna features high gain, low noise, and excellent F/B. Along with the antenna, you can also order the RHCP Kit similar to this one. Tuned for the 450-470 MHz frequency range to achieve RHCP polarization.



450MHz band characteristics:

• Exceptional coverage and propagation
• Deep building penetration and extended range capabilities
• Ideal for basements and rural substations
• Suitable for mission-critical applications
• Designed for private mobile networks
• Valuable for energy infrastructure
• Enhances public safety in the 450 MHz range

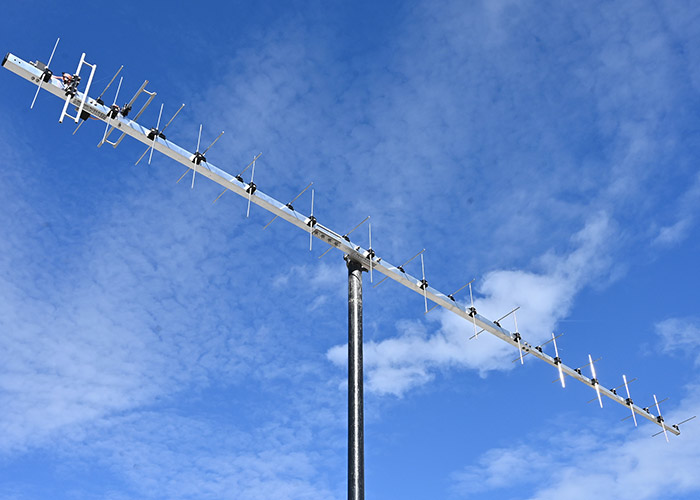

LTE450-470CROSS30 Antenna for PMR and critical IoT Appearance:



What does LTE450-470CROSS30 mean?

• LTE450-470 – Frequency range from 450MHz to 470 MHz
• CROSS – CROSS Yagi antenna has horizontal and vertical elements – separated on a single boom, the antenna is mounted in a “+” format
• 30 – 30 elements, 15 elements of horizontal polarization, and 15 elements of vertical polarization



Electrical Specifications of LTE450-470CROSS30 Antenna:

Frequency Range: 450 – 470 MHz
Free Space Forward Gain: 16.8 dBi
Front-to-Back Ratio: 26 dB
Polarization: Horizontal and Vertical or RHCP (with added RHCP Kit)
Distance Between Dipoles: 163 mm
Degrees: 90°
Isolation Between Antennas: More than 28dB
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 800W
Matching Method: Direct feed through common mode choke (current balun)
Connectors: 2 x “N”



Mechanical Specifications of LTE450-470CROSS30 Antenna:

Number of Elements: 30 (15 + 15)
Element Diameter: 4 mm Aluminum rod
Both dipoles diameter of 8 mm, Hard Copper tubing with a plastic coating
Element Mounting Position: CROSS antenna – 2 Sides
Balun and Connectors: Included
Boom Length: 3.85 m
Boom Size: Tapered Boom 30×30, 20×20 mm
Turning Radius: 2.2 m
Number of Boom Pieces: 3
Guy rope support: No, strong boom
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Clamp: Goliath
Survival Wind Speed: 150 km/h
Net Weight: 4.3kg
Gross Weight: 6 kg
Transportation Length: 119 cm



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.
  All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, significantly outperforming those designed with the EZNEC program.
• No tuning antennas.
  Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up.
  Everything is labeled, just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties.
  We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



If you want a longer or shorter antenna, ask
