Wideband VLNA 50-3000MHz F-F High IP3

Wideband VLNA 50-3000MHz F-F with PGA103+ with high dynamic range and very low noise figure. Suitable for all applications where low-noise broadband signal amplification is required, like SDR receivers. The preamplifier has good input and output return loss over a broad frequency range. VLNA amplifies extremely weak RF signals across a massive spectrum while adding minimal internal noise. It boosts signals before processing, making it vital for SDR receivers, multi-standard wireless receivers, and wideband communication monitoring.

F-F (Female-Female) refers to a version with both Female “N” connectors on the input and output side. Designed to be put in line with a coaxial cable ending with an “N” male connectors. The best position is to put it as close as possible to the antenna.

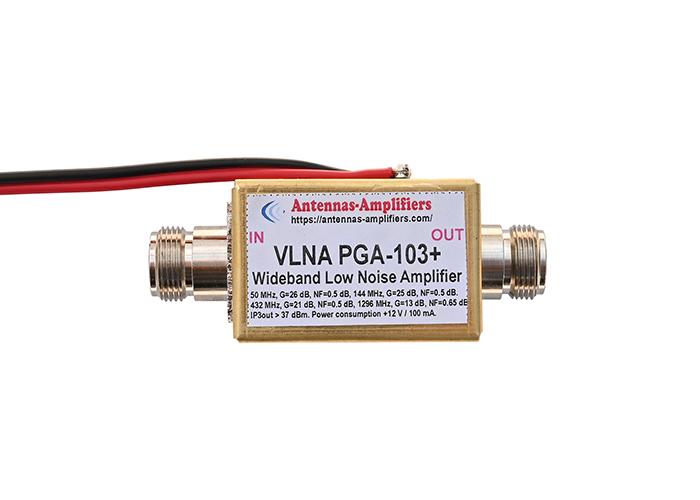

Wideband VLNA 50-3000MHz F-F Appearance:



Applications:

• Software-Defined Radio (SDR): Enhances weak antenna signals across VHF and UHF bands without drowning them in amplifier noise.
• Spectrum Monitoring & Defense: Broadens frequency coverage for electromagnetic surveillance and threat detection.
• Telecommunications: Amplifies multi-frequency cellular, Wi-Fi, and intermediate satellite frequencies.
• Test and Measurement: Serves as a front-end gain block for spectrum analyzers and oscilloscopes to measure weak signals accurately.



Key Benefits:

• High Sensitivity: Lowers the overall noise figure so weak signals remain clear.
• Wide Coverage: Eliminates the need to swap out band-specific preamplifiers.
• Gain Flatness: Provides even amplification across the entire 50 MHz–3 GHz range.



Wideband Low Noise Amplifier VLNA with PGA103+ M-F Specifications:

50 MHz, G=26 dB, NF=0.5 dB.
144 MHz, G=25 dB, NF=0.5 dB.
432 MHz, G=21 dB, NF=0.5 dB.
1296 MHz, G=13 dB, NF=0.65 dB.
IP3out > 37 dBm.
Power consumption +12 V / 100 mA.
Connectors: “N” Male / Female.



Measured results with HP8753ES of Wideband VLNA 50-3000MHz F-F:

Zoomed data from 1-440MHz



Measured data of Wideband VLNA 50-3000MHz F-F from 1MHz to 1.3 GHz.



Measured data of Wideband VLNA 50-3000MHz F-F from 1 MHz to 3 GHz



Put this preamplifier in line with a coaxial cable as close as possible to the antenna.
