23cm Low Noise Preamplifier with 200W T-R Relays EME2-1296 1240- 1325MHz

Unconditionally stable, ultimate design 23cm Low Noise Preamplifier with 200W T-R Relays EME2-1296 will satisfy all your needs to hear super weak EME and terrestrial signals. Full band coverage from 1240 MHz to 1325 MHz. The input stage consists of a SAV-541+ pHEMT transistor, which is one of the top MMICs for preamplifiers. This is followed by a low-noise PGA-103+ E-PHEMT high dynamic range preamplifier with excellent output return loss. A 23cm band pass filter is placed between the stages to prevent overloading the PGA-103+ with out-of-band signals. This combination achieves more than 30dB of gain, essential for compensating cable loss and poor noise figure characteristics of modern transceivers. Integrated high-power 200W Transmit / receive relays with high isolation to protect the preamplifier.



23cm Low Noise Preamplifier with 200W T-R Relays EME2-1296 1240- 1325MHz Appearane:

23cm Low Noise Preamplifier with 200W T-R Relays EME2-1296 receive gain:

50 MHz -65 dB
144 MHz -56 dB
432 MHz -11 dB
1240 – 1325 MHz +30.5 dB, NF 0.3 dB
2304 MHz -5 dB
T/R Delay 25ms.
Transmit: Input RL ≤ -35dB, Insertion loss: 0.25dB
Power consumption +12 V, 200 mA
Maximum power input at SWR:
1:1 = 200 W; 1:1.5 = 125 W; 1:2 = 95 W; 1:3 = 65 W

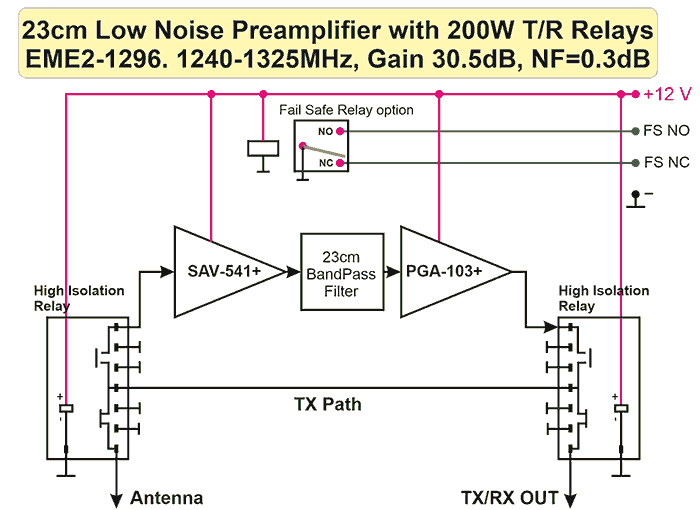

23cm Low Noise Preamplifier with 200W T-R Relays EME2-1296 Internal-Schematic

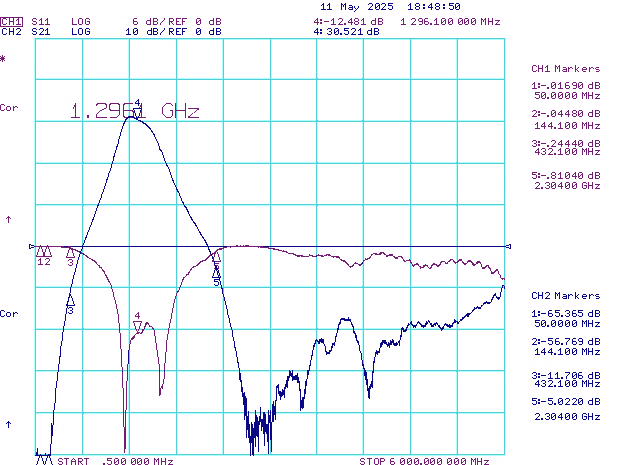

EME2-1296 Measured Gain and Return Loss on HP8753ES Network Analyzer

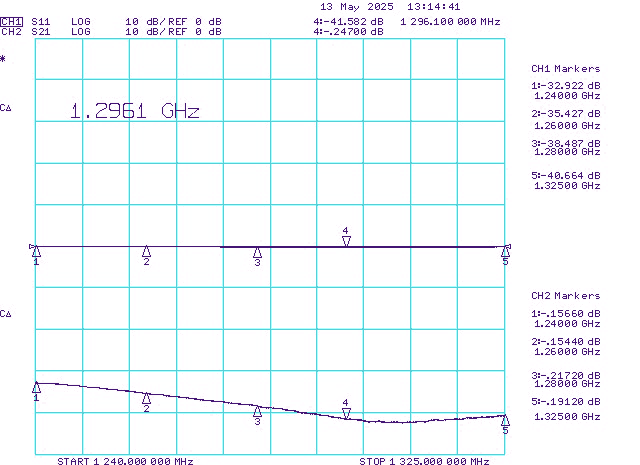

23cm Low Noise Preamplifier EME2-1296 Transmit Path Insertion Loss and Return Loss

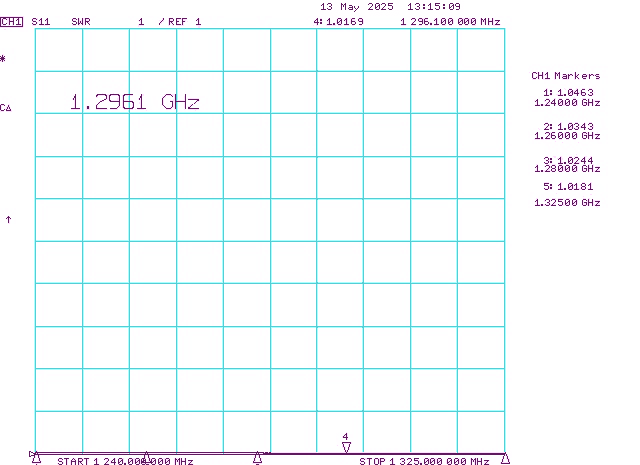

23cm LNA with 200W T/R Relays EME2-1296 Transmit Path SWR

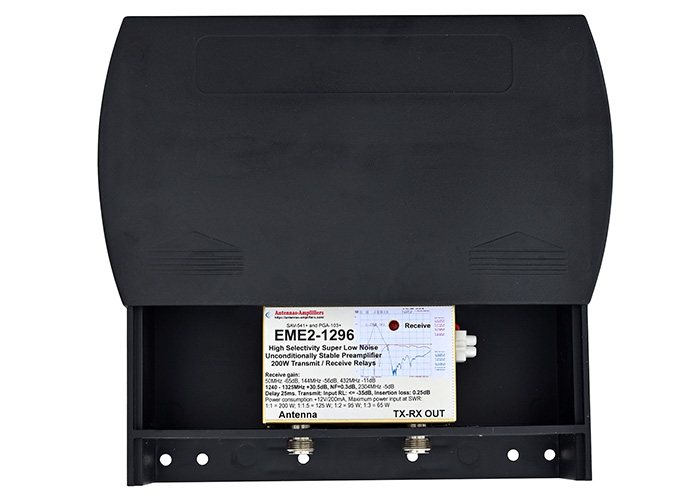

23cm Preamplifier with 200W T/R Relays EME2-1296 Outdoor Housing (+12 EUR)



Do not exceed the maximum power depending on the SWR according to the attached table. Otherwise, the relays could be easily burned.

Also will be good to consider “Advanced Sequencer” to prevent burning of EME2-1296
https://antennas-amplifiers.com/advanced-sequencer/

In combination with Advanced Sequencer + EME2-1296, we offer free wiring of the EME2-Sequencer with 1m wires, so you will only need to extend the wires to your length.
