2m CROSS DX EME Antenna 2mCROSS24DXP Ultimate Low Noise

Super low noise 2m CROSS DX EME Antenna 2mCROSS24DXP with unbeatable G/T of just -4.29 dB, and maximum gain are key features of this 2mCROSS24DXP Yagi antenna. Devoted to EME and DX hunting. Perfect for VHF Contests. Changing the polarization from horizontal to vertical with just one coaxial relay is easy. The highest possible gain for its length.



2m CROSS DX EME Antenna 2mCROSS24DXP Appearance:



What does 2mCROSS24DXP mean?

• 2m – 2m band
• CROSS – CROSS Yagi antenna has horizontal and vertical elements – separated on a single boom, the antenna is mounted in a “+” format
• 24 – 24 elements, 12 elements for horizontal polarization, and 12 elements for vertical polarization
• DX – For use in the DX part of the band 144-145MHz
• P – The default Power for the antenna is 2 x 1500W



2m CROSS DX EME Antenna 2mCROSS24DXP Azimuth Radiation Pattern



Electrical Specifications of 2m CROSS DX EME Antenna 2mCROSS24DXP

Frequency Range: 144 – 145MHz
Free Space Forward Gain: 15.7 dBi
Front-to-Back Ratio: 36 dB
-3 dB Horizontal Beamwidth: 32.4° For Horizontal Polarization
-3 dB Vertical Beamwidth: 34.8° For Horizontal Polarization
G/T for Tsky=290K-Tearth=5400K: -4.43 dB for Horizontal and -4.29 dB for Vertical Polarization
Polarization: Horizontal and Vertical (RHCP, LHCP with phase shift)
Distance Between Dipoles: 520 mm
Degrees: 90°
Isolation Between Antennas: More than 30 dB
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 2 x 1500W (more by request)
Matching Method: Direct feed through Teflon RG142 common mode choke (current balun)
Connectors: 2 x “N” (7/16DIN by request)



Power input option by order of 2mCROSS24DXP

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 2x2000W – 2mCROSS24DXE

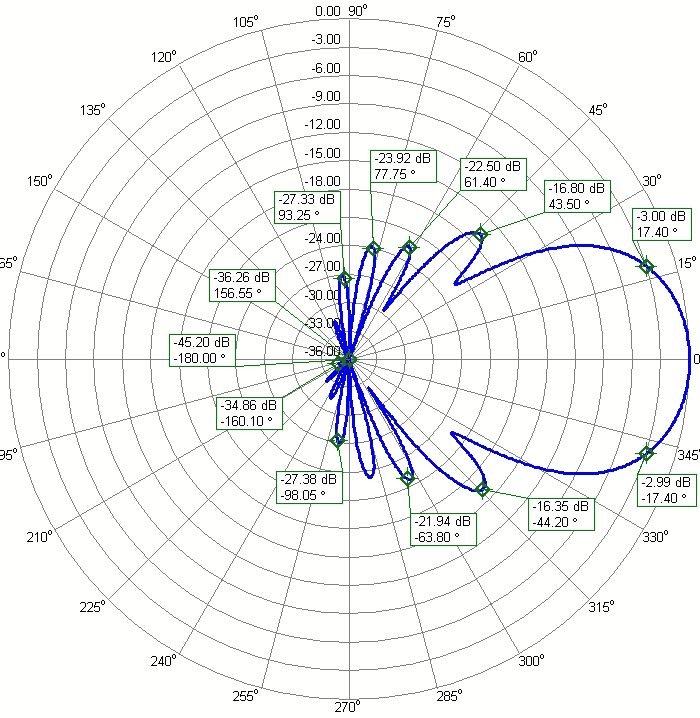

2m CROSS DX EME Antenna 2mCROSS24DXP Elevation Radiation Pattern



Mechanical Specifications of 2m CROSS DX EME Antenna 2mCROSS24DXP

Number of Elements: 24 (12 + 12)
Element Diameter: 8mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Balun and Connectors: Included
Longest Element: 1040 mm
Element Mounting Position: Two Sides
Boom Length: 7.4 m
Single Antenna Length: 6.83m
Tapered Boom: 40 x 40 mm, 30×30 mm, 20 x 20 mm
Number of Boom Pieces: 6
Turning Radius: 4.2m
Guy rope support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2 x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight: 12 kg
Gross Weight: 14 kg
Transportation Length: 1.5 m



2m CROSS DX EME Antenna 2mCROSS24DXP Worl Best Tant G/T -4.43dB For Horizontal Polarization



2m CROSS DX EME Antenna 2mCROSS24DXP Worl Best Tant G/T -4.29dB For Vertical Polarization



Low Noise 2mCROSS24DXP Appearance:



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority. All antennas have been calculated using state-of-the-art full 3D EM modeling software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
• No tuning antennas. Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up. Everything is labeled, just put number to number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties. We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.

The old name of the antenna was PA144-CROSS-24-7BGP



For the XPOL variant of the same antenna look here.

Check all 2m CROSS antennas

All 2m antennas: 2-meter antennas

2m XPOL antennas
