TriBand 2m 222MHz 70cm Antenna Two Connectors 2m222M70cm50-2C Two Connectors

World’s first TriBand 2m 222MHz 70cm Antenna Two Connectors 2m222M70cm50-2C with three antennas on the same boom. Super gain 2m 11 elements, excellent gain 12 elements on 1.25m 222-224MHz, and good gain 27 elements 70cm 432-432MHz for DXing, contesting, and EME. Superb, universal antenna for a limited space or one-man contesting.

With two antennas in a vertical stack, you can achieve remarkable gain on all three bands. 17.5 dBi on 2m, 17.35 dBi on 1.25m, and 18.8 dBi on 70cm for easy EME or contesting, even with 100W. The 2m antenna has a similar performance to our excellent Low Noise Yagis, with the best G/T for its length 2m11DXP.

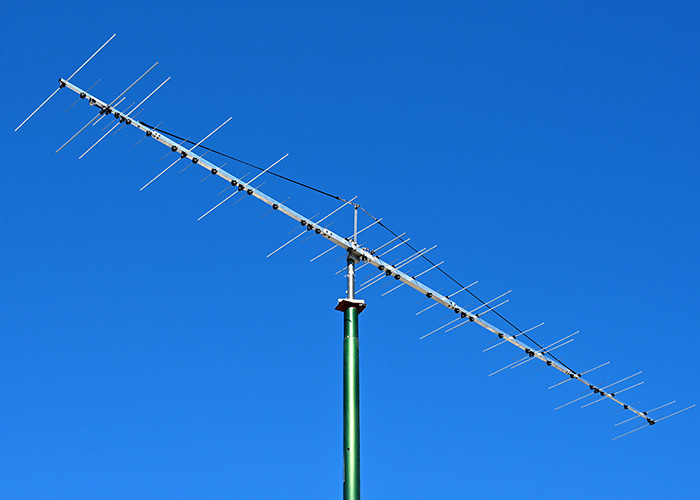

TriBand 2m 222MHz 70cm Antenna Two Connectors 2m222M70cm50-2C Appearance:



What does 2m222M70cm50-2C mean?

• 2m – 2m band with low SWR and super gain
• 222M – 222MHz – 1.25m band with low SWR and excellent gain
• 70cm – 70cm band with low SWR and excellent gain
• 50 – 50 elements. 11 Elements on 2m, 12 elements on 1.25m, and 27 elements on 70cm
• 2C  – 2Connectors. One for 2m+70cm and the other for 1.25m

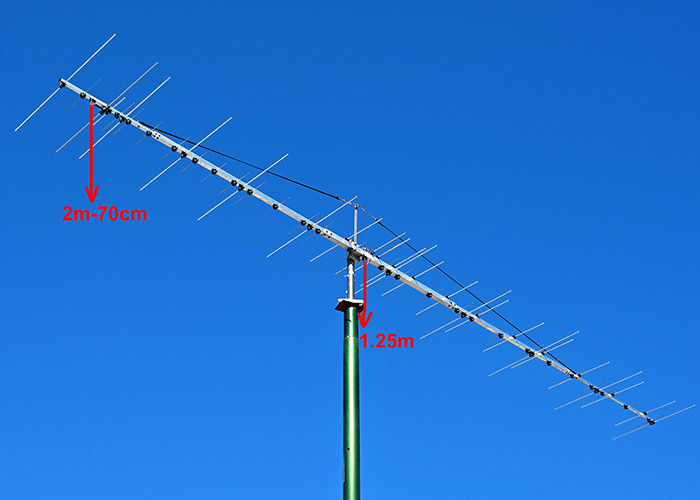

TriBand 2m 222MHz 70cm Antenna Two Connectors 2m222M70cm50-2C Connector Position



2m Electrical Specifications of TriBand 2m 222MHz 70cm Antenna Two Connectors 2m222M70cm50-2C

Frequency Range: 144 – 146 MHz
Free Space Forward Gain: 15 dBi
Front-to-Back Ratio: 31 dB
3 dB Horizontal Beamwidth: 32.6°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 750W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (common for 2m and 70cm)
Coupling to 1.25m: -26 dB

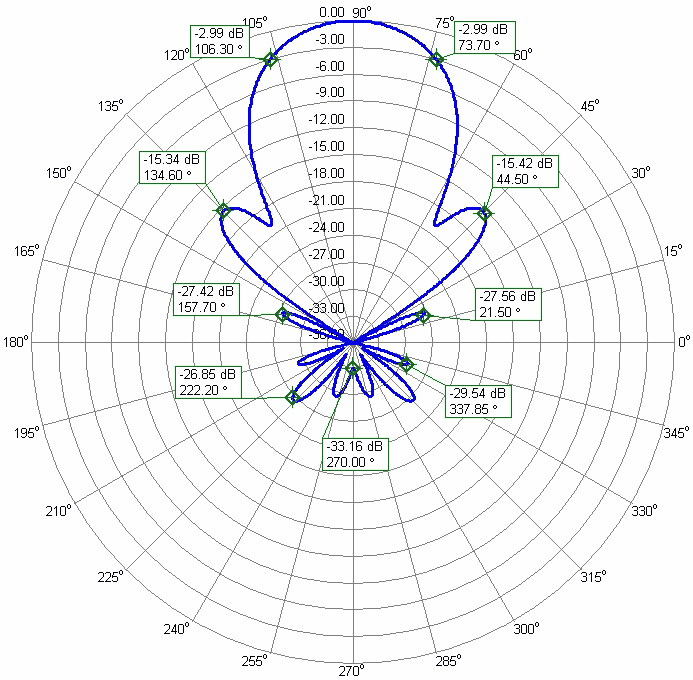

TriBand 2m 222MHz 70cm Antenna 2m222M70cm50-2C 2m Azimuth Radiation Pattern

2m Azimuth Radiation Pattern achieved with careful design and optimization.



1.25m Electrical Specifications of TriBand 2m 222MHz 70cm Antenna 2m222M70cm50-2C

Frequency Range: 222 – 224 MHz
Free Space Forward Gain: 14.2 dBi
Front-to-Back Ratio: 25 dB
3 dB Horizontal Beamwidth: 32.9°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 1200 W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”
Coupling to 2m: -26 dB
Coupling to 70cm: -27 dB

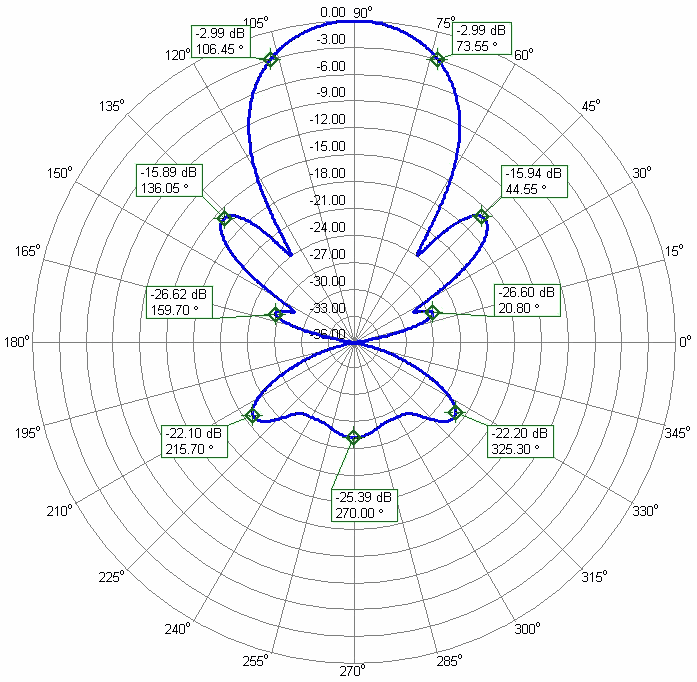

TriBand 2m 222MHz 70cm Antenna 2m222M70cm50-2C 1.25m Azimuth Radiation Pattern



70cm Electrical Specifications of TriBand 2m 222MHz 70cm Antenna 2m222M70cm50-2C

Frequency Range: 432 – 434 MHz
Free Space Forward Gain: 15.7 dBi
Front-to-Back Ratio: 25 dB
3 dB Horizontal Beamwidth: 22.1°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
Maximum Power Input: 700 W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” (common for 2m and 70cm)
Coupling to 1.25m: -27 dB

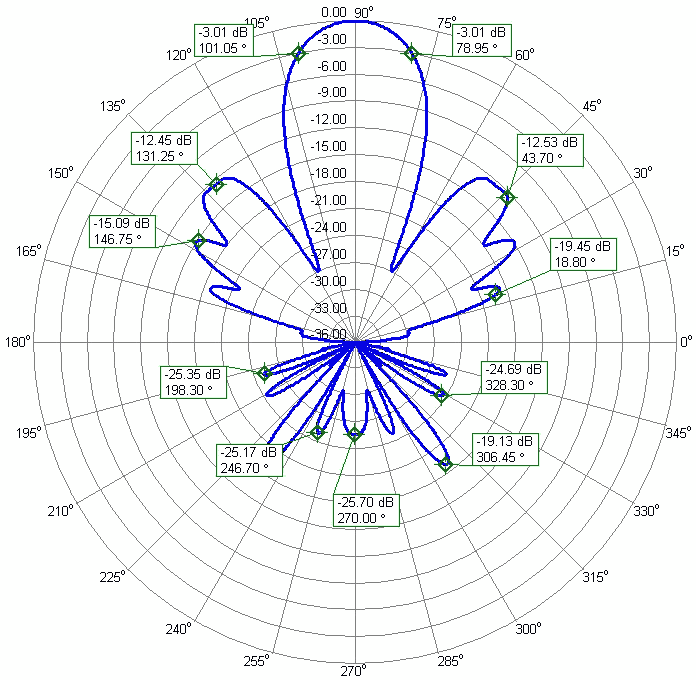

TriBand 2m 222MHz 70cm Antenna Two Connectors 2m222M70cm50-2C 70cm Azimuth Radiation Pattern



Mechanical Specifications of TriBand 2m 222MHz 70cm Antenna Two Connectors 2m222M70cm50-2C

2m Number of Elements: 11
1.25mNumber of Elements: 12
70cm Number of Elements: 27
2m Elements Diameter: 8 mm Aluminum tube
1.25m Elements Diameter: 8 mm Aluminum tube
70cm Elements Diameter: 4 mm rod
All Dipoles Diameter: 8 mm Hard Copper tube, plastic coated
2m and 70cm Element Mounting Position: Below the Boom
1.25m Element Mounting Position: Above the Boom
Balun and Connectors: Included
Boom Length: 5.84m
Boom Size: Tapered Boom 20x20mm, 30x30mm, 40x40mm
Number of Boom Pieces: 5
Guy Rope Support: Yes, Included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket with M8 screws all Stainless Steel
Survival Wind Speed: 150km/h
Net Weight: 9kg
Gross Weight: 9.9kg
Transportation Length: 1.5m

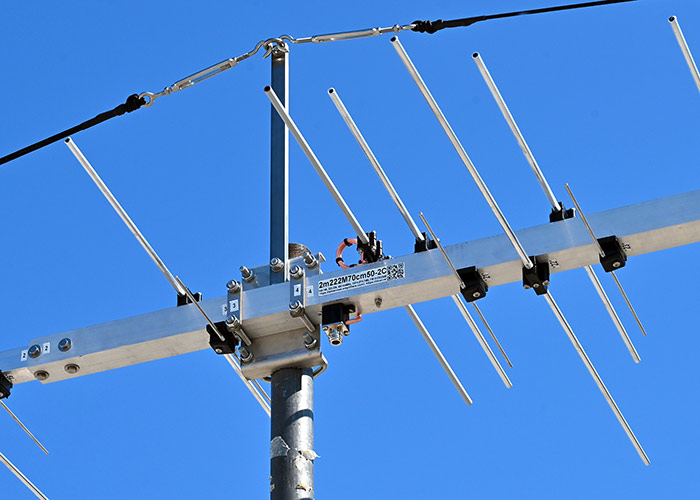

TriBand 2m 222MHz 70cm Antenna 2m222M70cm50-2C 1.25m Dipole and Bracket View



Achieved results for 2.7m vertical stacking distance:

2m: +2.5dB and gain 17.5 dBi
1.25m: +3.15dB and gain 17.35 dBi
70cm: +3.1dB and gain 18.8 dBi



Antennas-Amplifiers Product Benefits. A Major advance in antenna design.

• F/B and G/T superiority.
  All antennas have been calculated using state-of-the-art full 3D EM modeling software, including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using the EZNEC program.
• No tuning antennas.
  Before dispatch, we assemble and test each antenna’s characteristics. No need to tune any element to get a perfect SWR on the intended frequency range. Everything is pre-tuned.
• Easy to set up.
  Everything is labeled, just put a number to a number. Everything is included in the box: Antenna, balun, bracket, and guy rope support if needed. Yours is to assemble and have fun!
• Mechanical properties.
  We believe that our antennas are the world’s strongest antennas and are mechanically constructed much better than any antennas from other manufacturers.



If you want a longer or shorter antenna, ask

All TriBand 2m 222MHz 70cm Antennas
