2m Ultimate Transmit-Receive Relay Switches BPF VLNA EME2-144EXP 144-148MHz

A Complete Solution for contesting, DX-ing, and Moon bounce – EME. 2m Ultimate Transmit-Receive Relay Switches BPF VLNA EME2-144EXP. Full frequency range 144-148MHz with maximum power 1500W. Integrated high selectivity, high Q, super low loss input band pass filter to prevent overload from out-of-band signals. There are no HF 1.8- 30MHz, 6m 50-54MHz, or 70cm 430-450MHz stations that could overload this EME2-144EXP preamplifier. 1500W legal limit relays are integrated inside the EME2, including isolation relays. The extremely high-power device you always asked for.

QRO is made on low dielectric loss RT/duroid® 5880 Laminates (not on FR4)

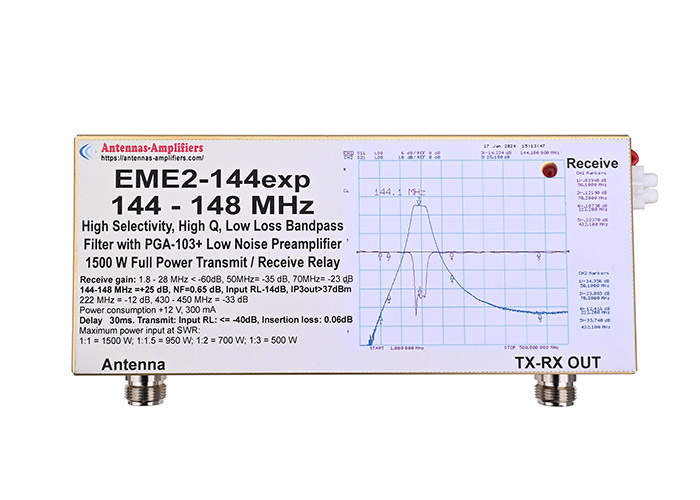

2m Ultimate Transmit-Receive Relay Switches BPF VLNA EME2-144EXP Appearance:

2m Ultimate Transmit-Receive Relay Switches BPF VLNA EME2-144EXP consist of:

• 144 – 148 MHz High Selectivity, High Q, Low Loss RX Bandpass Filter BPF
• Wideband Low Noise Amplifier
• Super high-power relays
• Isolation relays.

Receive gain:

1.8- 28MHz < -60dB
50 MHz < -35dB
70 MHz < -23dB
144-148MHz +25dB, NF= 0.65dB, Input RL= -14dB, IP3out >37dBm
222 MHz < -12dB
430-450MHz -33 dB
Power consumption +12V 360mA
Necessary Sequencer delay 30ms
Transmit Input Return Loss -40dB
Insertion Loss 0.06dB
Maximum power input at SWR: 1:1 1500W, 1:1.5 950W, 1:2 700W, 1:3 500W



2m Ultimate Transmit-Receive Relay Switches BPF VLNA EME2-144EXP Order Options:

• Outdoor housing (+12 EUR). The box used is “DB”
• Fail Safe Relay (+12 EUR). More explanations are here
• Gain Regulation (+7 EUR)
• 7/16 DIN connectors (+50 EUR)

When ordering, put in the notice options you need.

Advanced-Sequencer Connection Possibilities EME2-EME3-CROSS-XPOL-Polarization-Switch-H-V-RHCP-LHCP (PDF)

To use the EME2 or EME3, as well as any other in-line preamplifier, the Sequencer is mandatory. Put on Sequencer 30ms delay. With our Advanced Sequencer, we offer free wiring with 1m wires. Yours is just to extend to your preferred length.

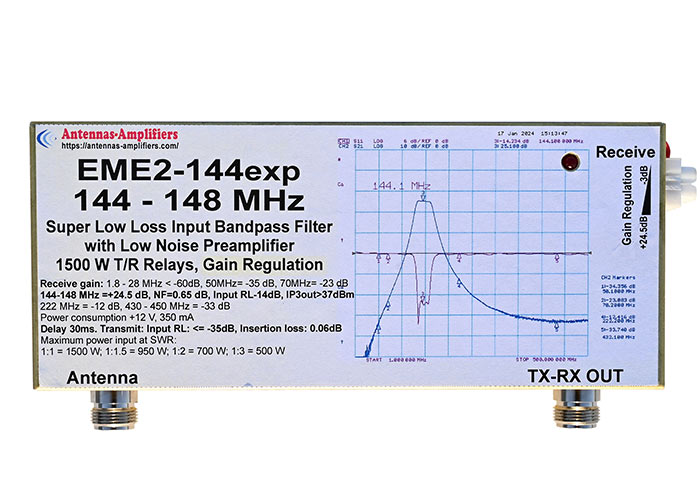

EME2-144 Gain Regulation Option Appearance:

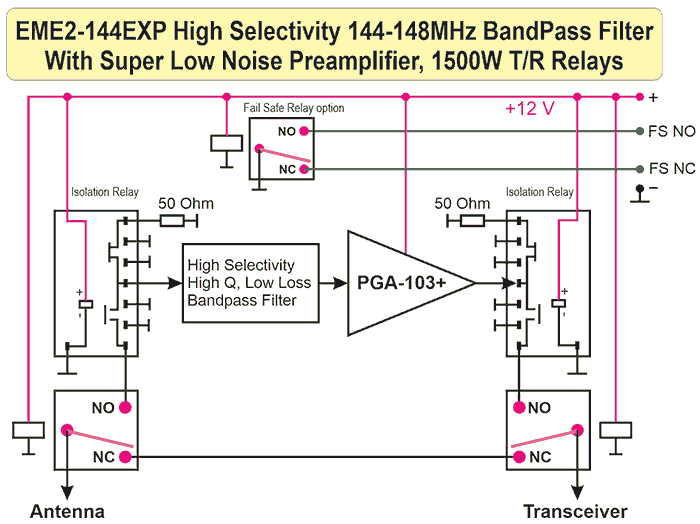

2m Ultimate T/R Relay Switches BPF VLNA EME2-144EXP Internal Connection Diagram



2m Ultimate Transmit-Receive Relay Switches BPF VLNA EME2-144EXP Measured Characteristics:

EME2-144EXP HF Gain



EME2-144EXP Gain and Return Loss



2m EME2-144EXP Insertion Loss and Return Loss



2m Ultimate Transmit-Receive Relay Switches BPF VLNA EME2-144EXP SWR



EME2 – EME3 Outdoor Housing Option:



Our EME2 – EME3 complete family 8m – 23cm is here.
