6m 2m 3-Band Top Level Antenna 6m2m30DXWide-3C DXing EME and FM

Phenomenal 6m 2m 3-Band Top Level Antenna 6m2m30DXWide-3C with 30 elements and three independent connectors: one for the 6m band, another for 2m DXing, and the third for 2m FM vertical polarization. It is good for chasing DXes, contesting, EME, and for FM  long distance repeaters or simplex operations in the range 144-146 or 144-148MHz by order. If you have an HF antenna on the tower and just 3m more mast, this antenna is the right choice to expand to three more bands with limited tower space.



6m2m30DXWide-3C antenna key features:

• The 6m antenna is almost identical to 6m7DXP, with identical gain, SWR, and F/B
• The 2m horizontal antenna has a gain that is between 11 elements 2m11DXP and 12 elements 2m12DXP
• The 2m vertical polarization antenna with 13.5dBi can reach any distant repeater in the FM range 144-148 or 144-146MHz

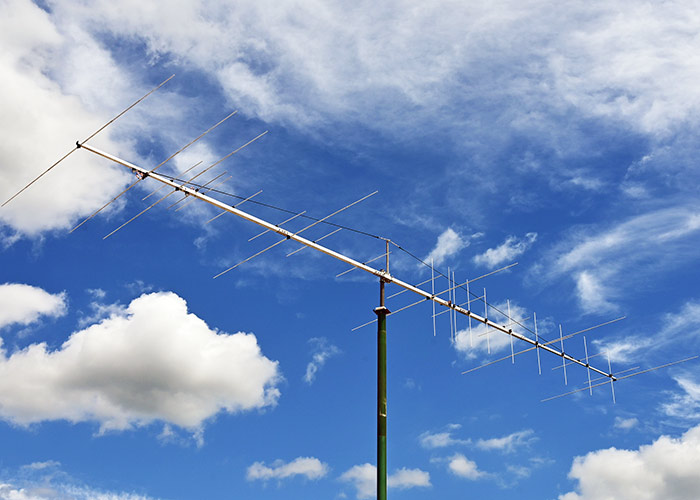

6m 2m 3-Band Top Level Antenna 6m2m30DXWide-3C appearance:



What does 6m2m30DXWide-3C mean?

• 6m – 6m band
• 2m – 2m band
• 30 – 30 Elements. 7 elements for 6m, 13 elements for 2m DX, and 10 elements for FM Vertical polarization
• DX – Intended for use on DX parts of the bands. 50-50.5MHz and 144-145MHz
• Wide – Wideband part vertical polarization 144-148MHz or 144-146MHz by order
• 3C – 3Connectors. One connector for a 6m band, a second for a 2m DX, and a third for FM



Antenna could be produced in two versions:

• SKU:0228 6m2m30DXW-3C 50-50.5MHz, 144-145MHz DX, 144-146MHz FM vertical polarization
• SKU:0229 6m2m30DXWide-3C 50-50.5MHz, 144-145MHz DX, 144-148MHz FM vertical polarization (this antenna)



6m Electrical specifications of 6m 2m 3-Band Top Level Antenna 6m2m30DXWide-3C

Frequency Range: 50-50.5MHz
Free Space Forward Gain: 12.75dBi
Front-to-Back Ratio: 33dB
-3 dB Horizontal Beamwidth: 42°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 1500W (by request, “E” 3500W version or “EX” 8000W)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” or 7/16 DIN



6m Power input options by order of 6m2m30DXWide-3C

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 3500W 6m2m30DXWideE-3C
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 8000W 6m2m30DXWideEX-3C

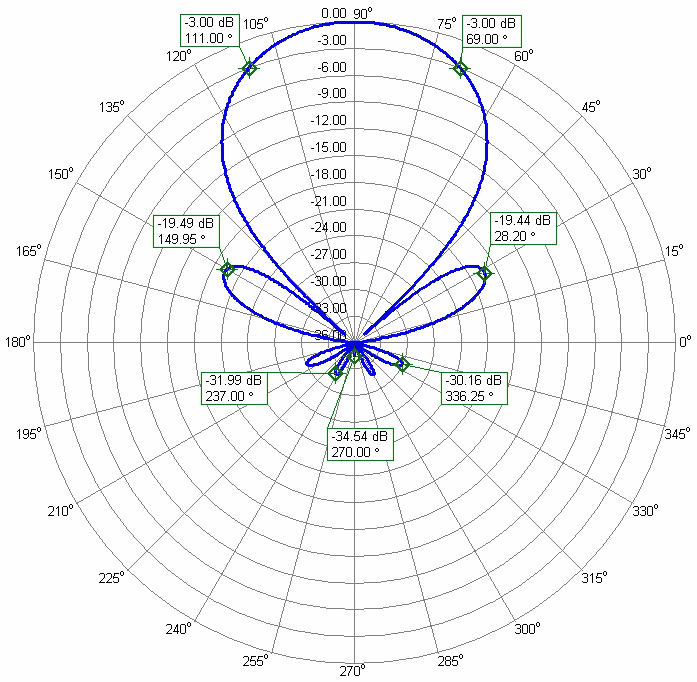

6m Horizontal Polarization Antenna 6m2m30DXWide-3C Azimuth Radiation Pattern



2m DX electrical specifications of 6m 2m 3-Band Top Level Antenna 6m2m30DXWide-3C

Frequency Range: 144-145MHz
Free Space Forward Gain: 15.4dBi
Front-to-Back Ratio: 36dB
-3 dB Horizontal Beamwidth: 30°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 1500W (by request, “E” 2000W version or “EX” 5000W)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” or 7/16 DIN



2m DX power input options by order of 6m2m30DXWide-3C

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 2000W 6m2m30DXWideE-3C
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 5000W 6m2m30DXWideEX-3C

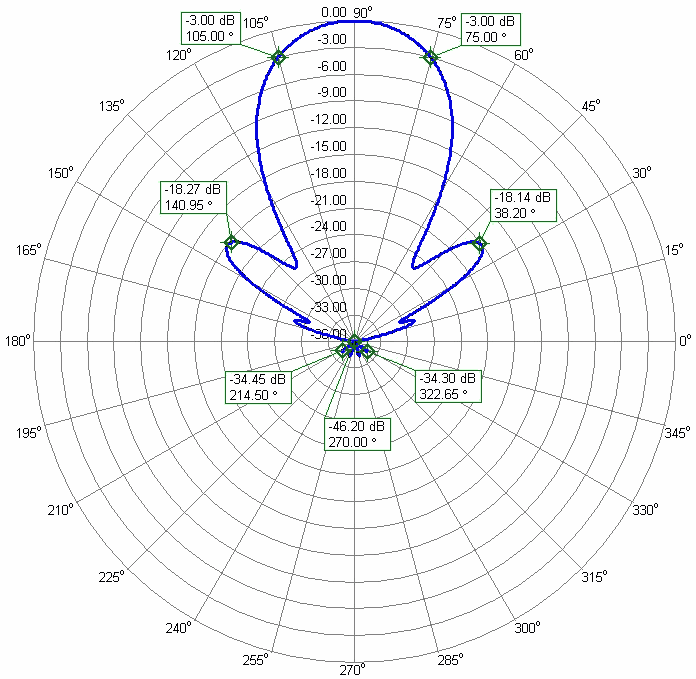

2m Horizontal Polarization Antenna 6m2m30DXWide-3C. Excellent Azimuth Radiation Pattern



2m FM (Vertical Polarization) electrical specifications of 6m2m30DXWide-3C

Frequency Range: 144-146MHz or 144-148MHz by order
Free Space Forward Gain: 13.5dBi
Front-to-Back Ratio: 26dB
-3 dB Horizontal Beamwidth: 42.45°
-3 dB Elavation Beamwidth: 38.1°
Polarization: Vertical
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: <1.2
Maximum Power Input: 1000W (for more power, a 7/16 DIN connector is mandatory)
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N” or 7/16 DIN

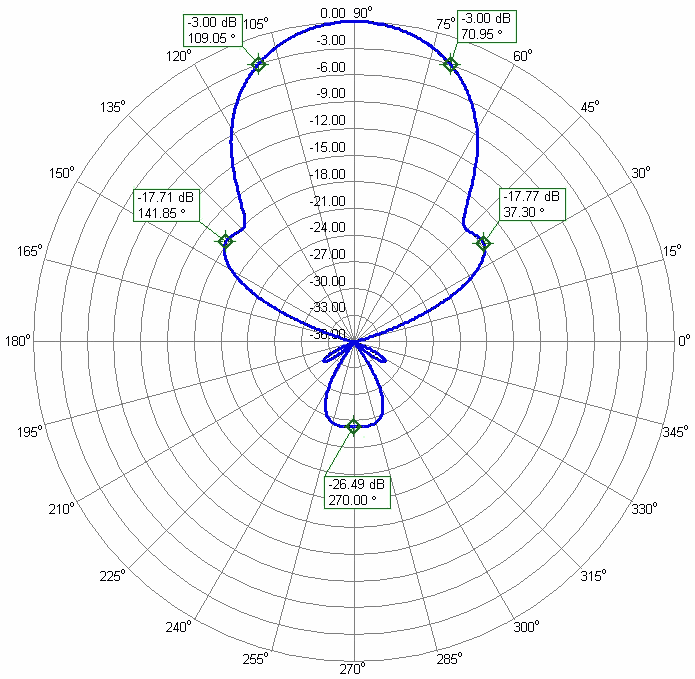

2m Vertical Polarization Antenna 6m2m30DXWide-3C Elevation Radiation Pattern



2m FM vertical polarization part of the antenna 6m2m30DXWide-3C power input options:

“E” – Extra power 7/16 DIN Input connector SF250 7mm Teflon balun cable: 15000W 6m2m30DXWideE-3C
“EX” – EXtreme power 7/16 DIN Input connector RG115 10mm Teflon balun cable: 3000W 6m2m30DXWideEX-3C



6m DX Mechanical Specifications of 6m 2m 3-Band Top Level Antenna 6m2m30DXWide-3C

Number of Elements: 7
Element Diameter: Tapered elements. Center tube 12mm, extensions 10 and 8mm
Dipole Diameter: Tapered dipole. Center tube 12mm, extensions 10 and 8mm
Longest Element: 3.1 m
Element Mounting Position: Below the boom
Balun and Connector: Included



2m DX Mechanical Specifications of 6m 2m 3-Band Top Level Antenna 6m2m30DXWide-3C

Number of Elements: 13
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm, Hard Copper tubing with a plastic coating
Longest Element: 1030 mm
Element Mounting Position: Above the Boom
Balun and Connector: Included



2m FM Mechanical Specifications of 3-Band 6m 2m Antenna 6m2m30DXWide-3C

Number of Elements: 10
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm, Hard Copper tubing with a plastic coating
Longest Element: 1030 mm
Element Mounting Position: On a side
Balun and Connector: Included



Common mechanical characteristics of 6m 2m 3-Band Top Level Antenna 6m2m30DXWide-3C

Boom Length: 8.7 m
Tapered Boom 40×40 mm, 30×30 mm, 20×20 mm
Turning Radius: 5.5 m
Number of Boom Pieces: 7
Guy rope support: Yes, included
Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
Bracket: Stainless Steel AISI 316L (A4)
Clamp: 2x M8 Stainless Steel
Survival Wind Speed: 150 km/h
Net Weight:  16 kg
Gross Weight:  18 kg
Transportation Length: 1.5 m
